SKU: JSC121MS-JUB

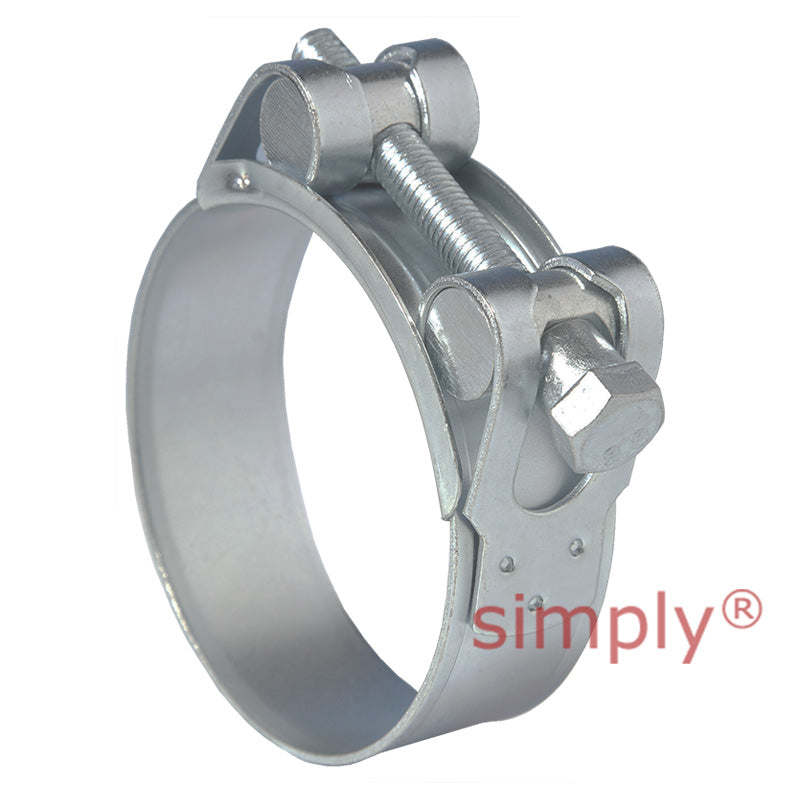

JSC121MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 113mm-121mm Band Width 25mm
JSC121MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 113mm-121mm Band Width 25mm
Regular price
£4.79
ex VAT£5.75inc. VAT
Regular price
Sale price
£4.79
ex VAT£5.75
inc. VAT
In stock
Price Break
5+
£4.74
10+
£4.55
20+
£4.45
50+
£4.31
100+
£4.22
500+
£3.98
1000+
£3.35
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 113mm
- Max Adjustment Range:
- 121mm
Technical
Technical
| Adjustment Range | 113mm - 121mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.5mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
