SKU: JSC059MS-JUB

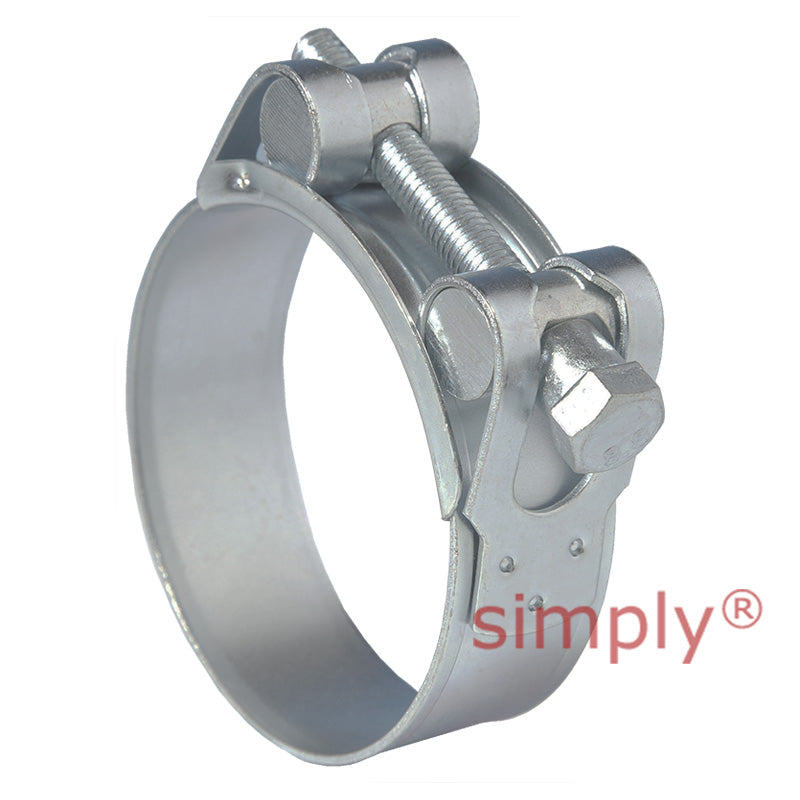

JSC059MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 56mm-59mm Band Width 20mm
JSC059MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 56mm-59mm Band Width 20mm
Regular price
£4.78
ex VAT£5.74inc. VAT
Regular price
Sale price
£4.78
ex VAT£5.74
inc. VAT
Low stock
Price Break
3+
£4.73
5+
£4.54
9+
£4.45
19+
£4.30
49+
£4.21
74+
£3.97
99+
£3.35
199+
£0.00
249+
£0.00
499+
£0.00
999+
£0.00
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 20mm
- Min Adjustment Range:
- 56mm
- Max Adjustment Range:
- 59mm
Technical
Technical
| Adjustment Range | 56mm - 59mm |
|---|---|
| Band Width (+/- 0.1) | 20mm |
| Band Thickness (+/- 0.1) | 1mm |
| Recommended Torque | 6Nm |
| Maximum Torque | 8Nm |
| Screw Head | 10mm |
