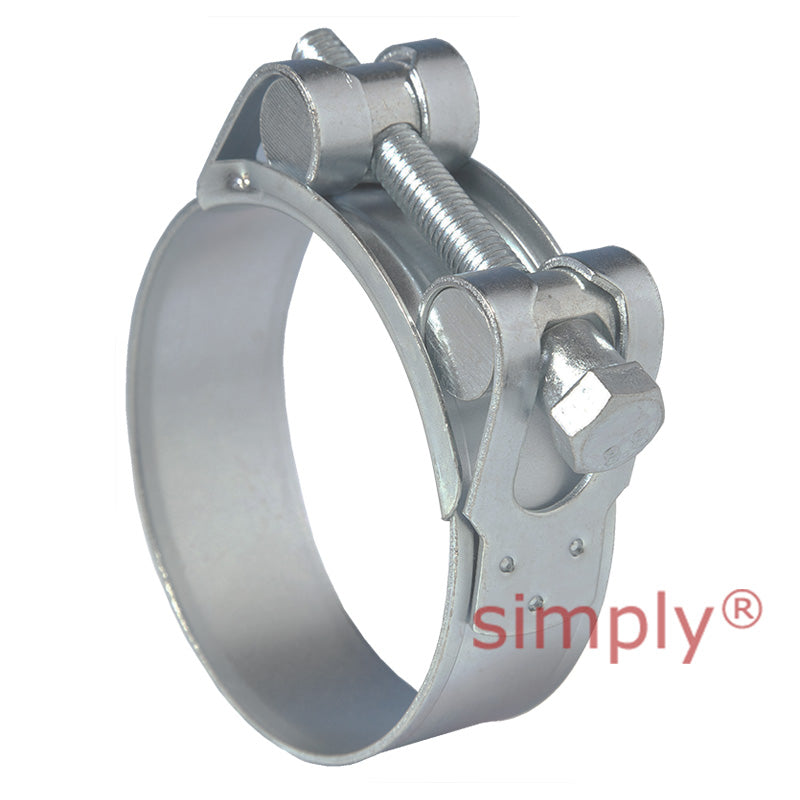

JSC039MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 36mm-39mm Band Width 20mm
JSC039MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 36mm-39mm Band Width 20mm
Regular price
£3.82
ex VAT£4.58inc. VAT
Regular price
Sale price
£3.82
ex VAT£4.58
inc. VAT
Low stock
Price Break
3+
£2.67
5+
£2.29
9+
£2.10
19+
£1.91
49+
£1.53
74+
£1.34
99+
£1.15
199+
£0.00
249+
£0.00
499+
£0.00
999+
£0.00
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 20mm
- Min Adjustment Range:
- 36mm
- Max Adjustment Range:
- 39mm
Technical
Technical
| Adjustment Range | 36mm - 39mm |
|---|---|
| Band Width (+/- 0.1) | 20mm |
| Band Thickness (+/- 0.1) | 1mm |
| Recommended Torque | 6Nm |
| Maximum Torque | 8Nm |
| Screw Head | 10mm |
