SKU: JSC028MS-JUB

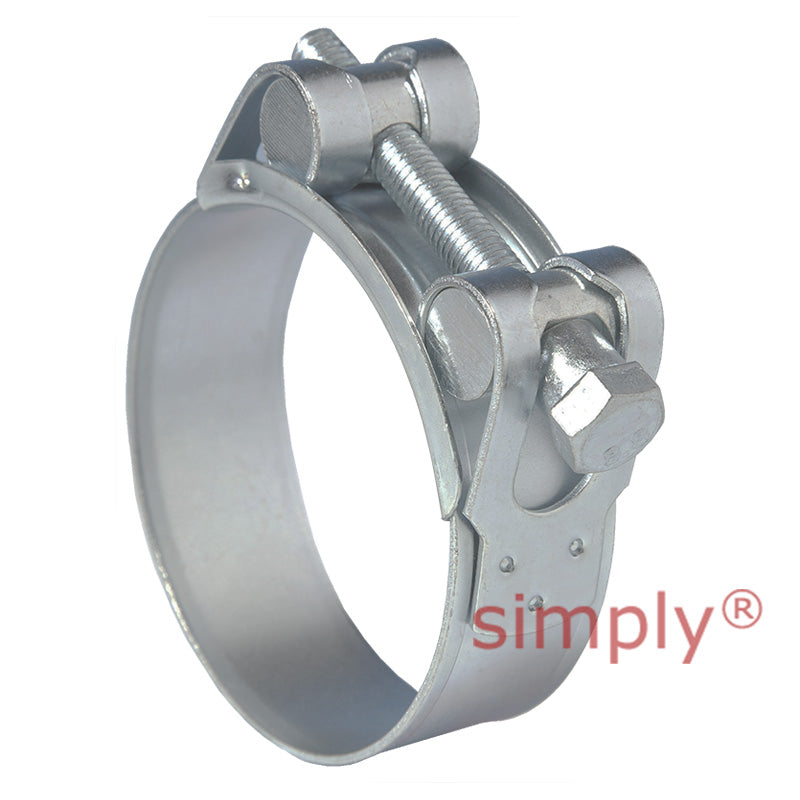

JSC028MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 26mm-28mm Band Width 18mm
JSC028MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 26mm-28mm Band Width 18mm
Regular price
£2.86
ex VAT£3.43inc. VAT
Regular price
Sale price
£2.86
ex VAT£3.43
inc. VAT
Low stock
Price Break
3+
£2.00
5+
£1.72
9+
£1.57
19+
£1.43
49+
£1.14
74+
£1.00
99+
£0.86
199+
£0.00
249+
£0.00
499+
£0.00
999+
£0.00
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 18mm
- Min Adjustment Range:
- 26mm
- Max Adjustment Range:
- 28mm
Technical
Technical
| Adjustment Range | 26mm - 28mm |
|---|---|
| Band Width (+/- 0.1) | 18mm |
| Band Thickness (+/- 0.1) | 0.6mm |
| Recommended Torque | 4.5Nm |
| Maximum Torque | 6Nm |
| Screw Head | 8mm |
