SKU: HMV50E-SKF

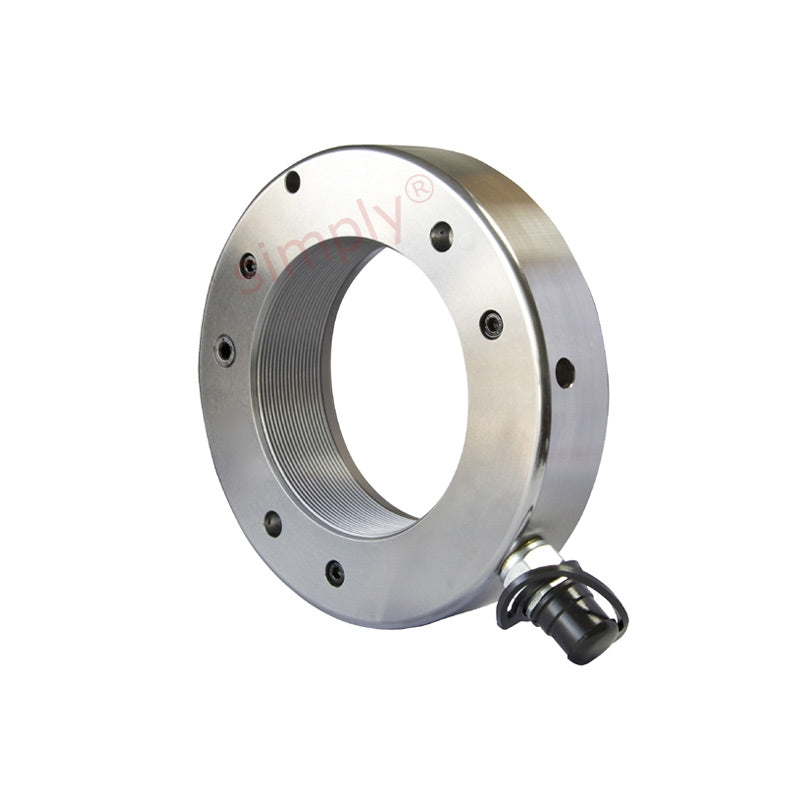

SKF HMV50E Metric Hydraulic Nut Tr250x4 Thread
SKF HMV50E Metric Hydraulic Nut Tr250x4 Thread
Regular price
£3,623.99
ex VAT£4,348.79inc. VAT
Regular price
Sale price
£3,623.99
ex VAT£4,348.79
inc. VAT
In stock
Price Break
10+
£3,225.35
19+
£3,044.15
29+
£3,007.91
39+
£2,971.67
49+
£2,935.43
74+
£2,899.19
99+
£2,717.99
199+
£2,681.75
249+
£2,645.51
499+
£2,609.27
999+
£2,536.79
Couldn't load pickup availability
Description
Description
|
SKF HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using an SKF Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of an SKF Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| G Thread | Tr250x4 |
|---|---|
| d1 | 252 |
| d2 | 329mm |
| d3 | 342mm |
| B | 46mm |
| B1 | 9mm |
| Permitted piston displacement | 10mm |
| Piston area | 17600mm2 |
