SKU: HMV12E-SKF

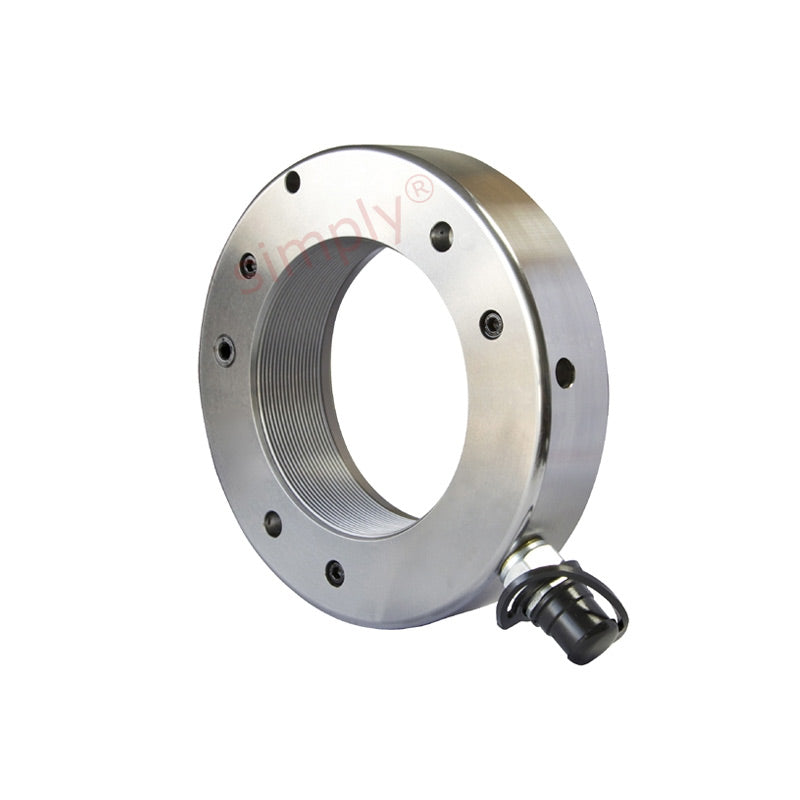

SKF HMV12E Metric Hydraulic Nut M60x2 Thread
SKF HMV12E Metric Hydraulic Nut M60x2 Thread
Regular price
£895.31
ex VAT£1,074.37inc. VAT
Regular price
Sale price
£895.31
ex VAT£1,074.37
inc. VAT
In stock
Price Break
10+
£796.83
19+
£752.06
29+
£743.11
39+
£734.15
49+
£725.20
74+
£716.25
99+
£671.48
199+
£662.53
249+
£653.58
499+
£644.62
999+
£626.72
Description
Description
|
SKF HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using an SKF Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of an SKF Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| G Thread | M60x2 |
|---|---|
| d1 | 60.5 |
| d2 | 115mm |
| d3 | 152mm |
| B | 38mm |
| B1 | 5mm |
| Permitted piston displacement | 5mm |
| Piston area | 3300mm2 |
