SKU: HMV-52-EBF-HN-SNR

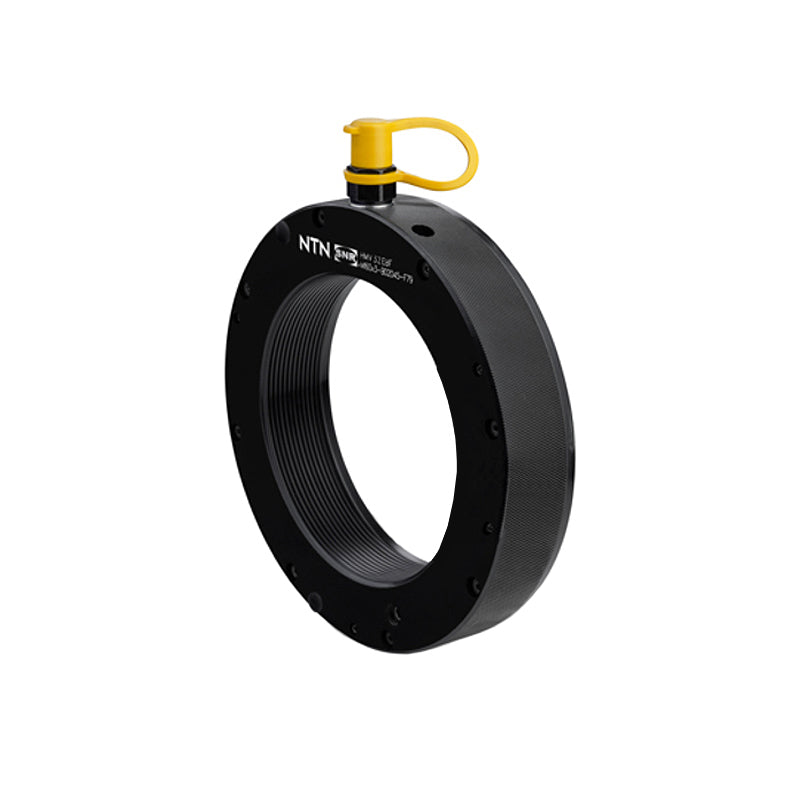

SNR HMV52 Metric Hydraulic Nut with Tr260x4 Thread - Allow 2-3 Days
SNR HMV52 Metric Hydraulic Nut with Tr260x4 Thread - Allow 2-3 Days
Regular price
£2,550.85
ex VAT£3,061.02inc. VAT
Regular price
Sale price
£2,550.85
ex VAT£3,061.02
inc. VAT
In stock
Price Break
10+
£2,270.26
19+
£2,142.71
29+
£2,117.21
39+
£2,091.70
49+
£2,066.19
74+
£2,040.68
99+
£1,913.14
199+
£1,887.63
249+
£1,862.12
499+
£1,836.61
999+
£1,785.60
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- Tr260x4
- Inside Diameter:
- 262mm
- Outside Diameter:
- 356mm
- Width:
- 56mm
- Flange Width:
- 9mm
Technical
Technical
| HMV | HMV52 |
|---|---|
| Thread G | Tr260x4 |
| Outside Diameter D | 356mm |
| Total Width B | 56mm |
| Piston Diameter max. d2 | 352mm |
| Permitted Piston Stroke | 11mm |
| Flange Width B1 | 9mm |
| Body Width B2 | 47mm |
| Diameter d1 | 262mm |
| Piston Surface Area | 19150mm2 |
| Weight | 19.2kg |
