SKU: HMV-48-EBF-HN-SNR

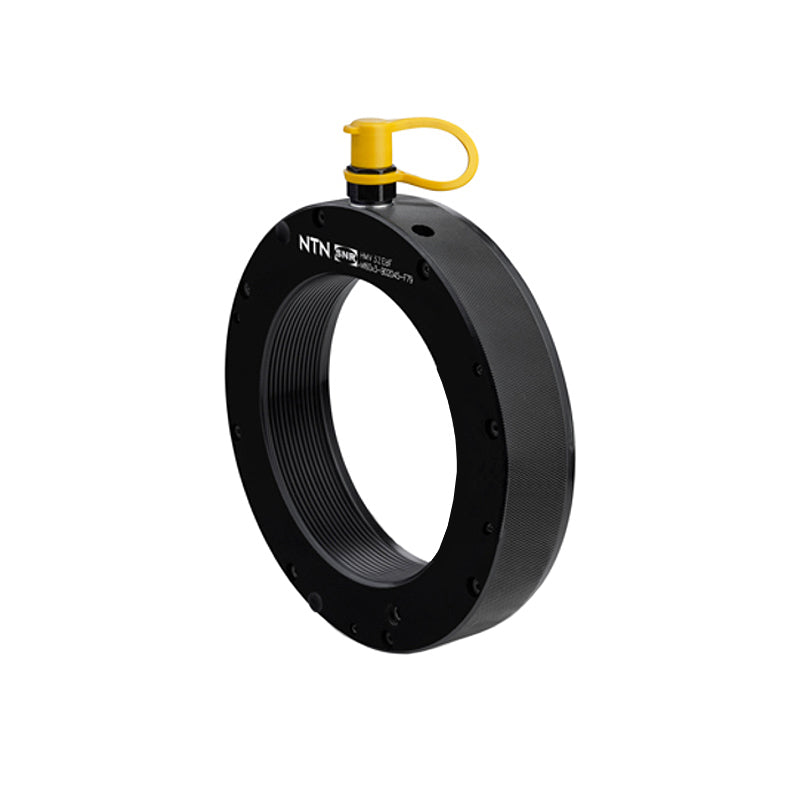

SNR HMV48 Metric Hydraulic Nut with Tr240x4 Thread - Allow 2-3 Days
SNR HMV48 Metric Hydraulic Nut with Tr240x4 Thread - Allow 2-3 Days
Regular price
£2,432.16
ex VAT£2,918.59inc. VAT
Regular price
Sale price
£2,432.16
ex VAT£2,918.59
inc. VAT
In stock
Price Break
10+
£2,164.62
19+
£2,043.01
29+
£2,018.69
39+
£1,994.37
49+
£1,970.05
74+
£1,945.73
99+
£1,824.12
199+
£1,799.80
249+
£1,775.48
499+
£1,751.16
999+
£1,702.51
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- Tr240x4
- Inside Diameter:
- 242mm
- Outside Diameter:
- 330mm
- Width:
- 55mm
- Flange Width:
- 9mm
Technical
Technical
| HMV | HMV48 |
|---|---|
| Thread G | Tr240x4 |
| Outside Diameter D | 330mm |
| Total Width B | 55mm |
| Piston Diameter max. d2 | 326mm |
| Permitted Piston Stroke | 10mm |
| Flange Width B1 | 9mm |
| Body Width B2 | 46mm |
| Diameter d1 | 242mm |
| Piston Surface Area | 17250mm2 |
| Weight | 16.2kg |
