SKU: HMV-46-EBF-HN-SNR

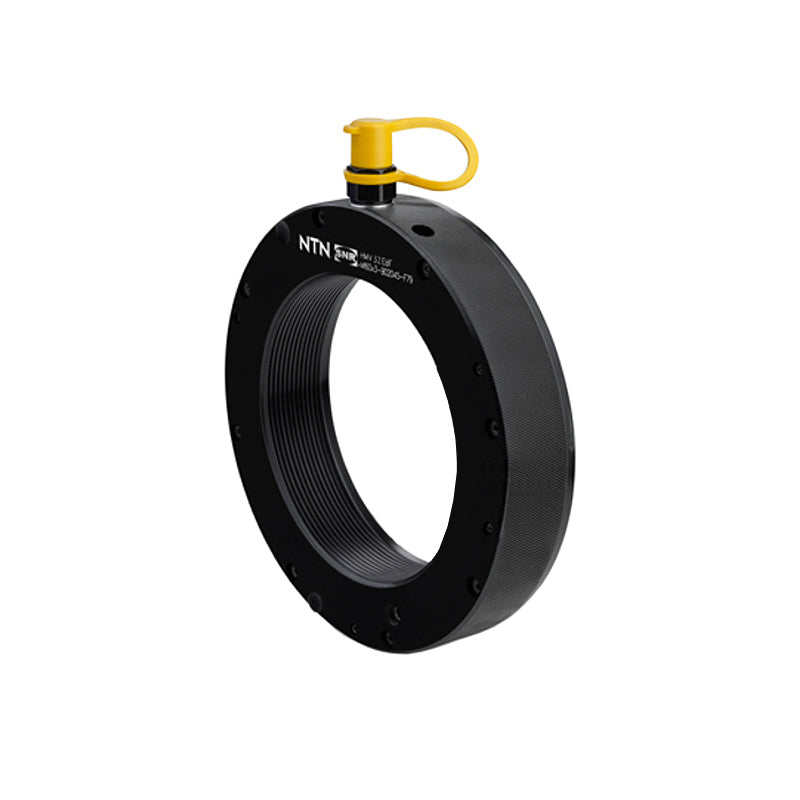

SNR HMV46 Metric Hydraulic Nut with Tr230x4 Thread - Allow 2-3 Days
SNR HMV46 Metric Hydraulic Nut with Tr230x4 Thread - Allow 2-3 Days
Regular price
£2,334.62
ex VAT£2,801.54inc. VAT
Regular price
Sale price
£2,334.62
ex VAT£2,801.54
inc. VAT
In stock
Price Break
10+
£2,077.81
19+
£1,961.08
29+
£1,937.73
39+
£1,914.39
49+
£1,891.04
74+
£1,867.70
99+
£1,750.97
199+
£1,727.62
249+
£1,704.27
499+
£1,680.93
999+
£1,634.23
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- Tr230x4
- Inside Diameter:
- 232mm
- Outside Diameter:
- 318mm
- Width:
- 53mm
- Flange Width:
- 8mm
Technical
Technical
| HMV | HMV46 |
|---|---|
| Thread G | Tr230x4 |
| Outside Diameter D | 318mm |
| Total Width B | 53mm |
| Piston Diameter max. d2 | 314mm |
| Permitted Piston Stroke | 9mm |
| Flange Width B1 | 8mm |
| Body Width B2 | 45mm |
| Diameter d1 | 232mm |
| Piston Surface Area | 15450mm2 |
| Weight | 14.7kg |
