SKU: HMV-34-EBF-HN-SNR

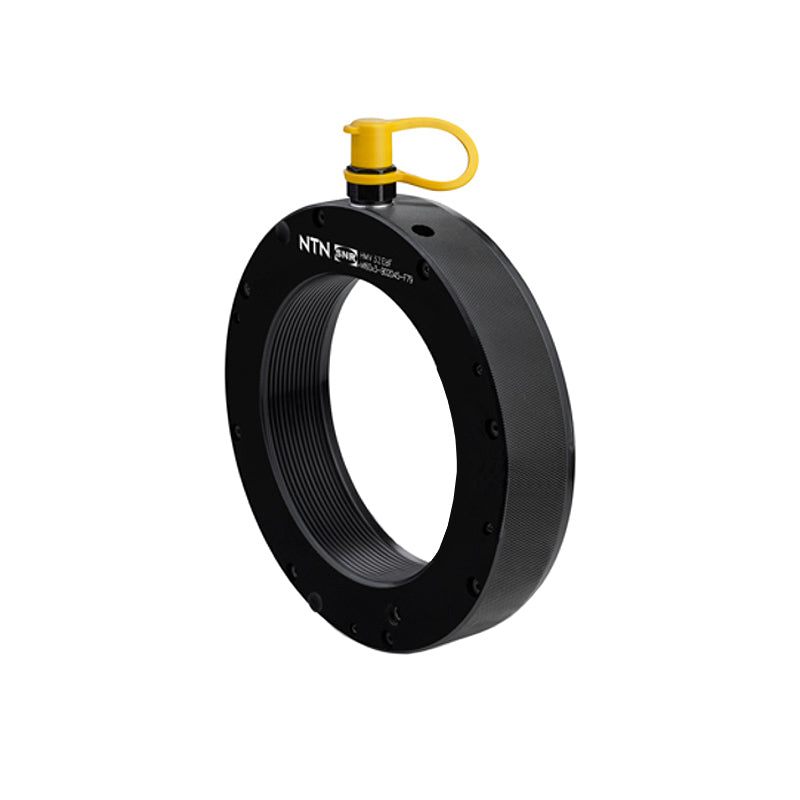

SNR HMV34 Metric Hydraulic Nut with M170x3 Thread - Allow 2-3 Days
SNR HMV34 Metric Hydraulic Nut with M170x3 Thread - Allow 2-3 Days
Regular price
£1,667.48
ex VAT£2,000.98inc. VAT
Regular price
Sale price
£1,667.48
ex VAT£2,000.98
inc. VAT
In stock
Price Break
10+
£1,484.06
19+
£1,400.68
29+
£1,384.01
39+
£1,367.33
49+
£1,350.66
74+
£1,333.98
99+
£1,250.61
199+
£1,233.94
249+
£1,217.26
499+
£1,200.59
999+
£1,167.24
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M170x3
- Inside Diameter:
- 170.5mm
- Outside Diameter:
- 244mm
- Width:
- 48mm
- Flange Width:
- 7mm
Technical
Technical
| HMV | HMV34 |
|---|---|
| Thread G | M170x3 |
| Outside Diameter D | 244mm |
| Total Width B | 48mm |
| Piston Diameter max. d2 | 240mm |
| Permitted Piston Stroke | 6mm |
| Flange Width B1 | 7mm |
| Body Width B2 | 41mm |
| Diameter d1 | 170.5mm |
| Piston Surface Area | 9800mm2 |
| Weight | 8.6kg |
