SKU: HMV-22-EBF-HN-SNR

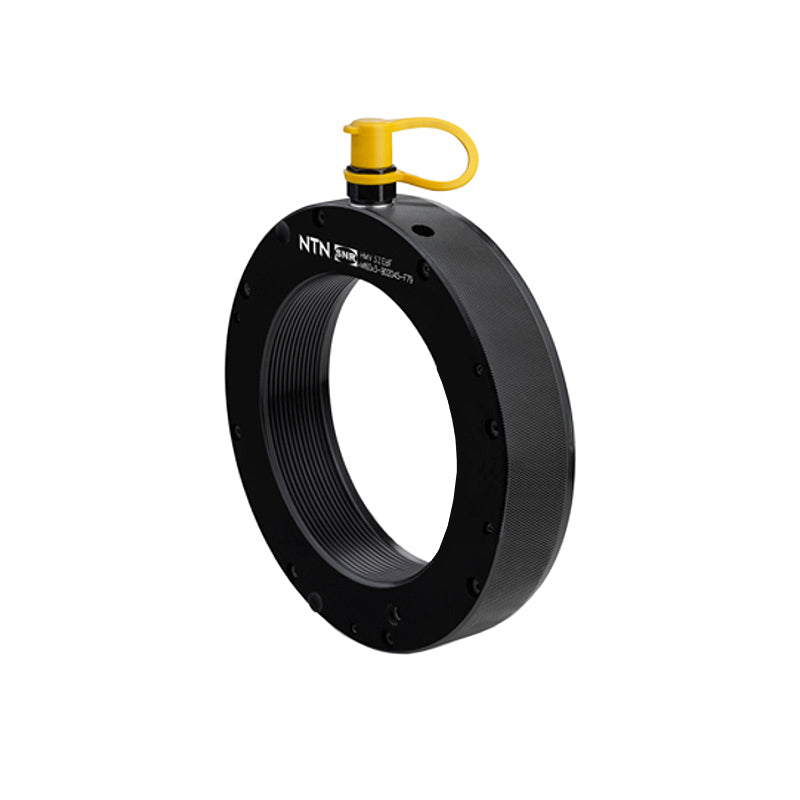

SNR HMV22 Metric Hydraulic Nut with M110x2 Thread - Allow 2-3 Days
SNR HMV22 Metric Hydraulic Nut with M110x2 Thread - Allow 2-3 Days
Regular price
£1,129.80
ex VAT£1,355.76inc. VAT
Regular price
Sale price
£1,129.80
ex VAT£1,355.76
inc. VAT
In stock
Price Break
10+
£1,005.52
19+
£949.03
29+
£937.73
39+
£926.44
49+
£915.14
74+
£903.84
99+
£847.35
199+
£836.05
249+
£824.75
499+
£813.46
999+
£790.86
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M110x2
- Inside Diameter:
- 110.5mm
- Outside Diameter:
- 178mm
- Width:
- 44mm
- Flange Width:
- 6mm
Technical
Technical
| HMV | HMV22 |
|---|---|
| Thread G | M110x2 |
| Outside Diameter D | 178mm |
| Total Width B | 44mm |
| Piston Diameter max. d2 | 174mm |
| Permitted Piston Stroke | 5mm |
| Flange Width B1 | 6mm |
| Body Width B2 | 38mm |
| Diameter d1 | 110.5mm |
| Piston Surface Area | 5400mm2 |
| Weight | 5.2kg |
