SKU: HMK0820T2-NTN

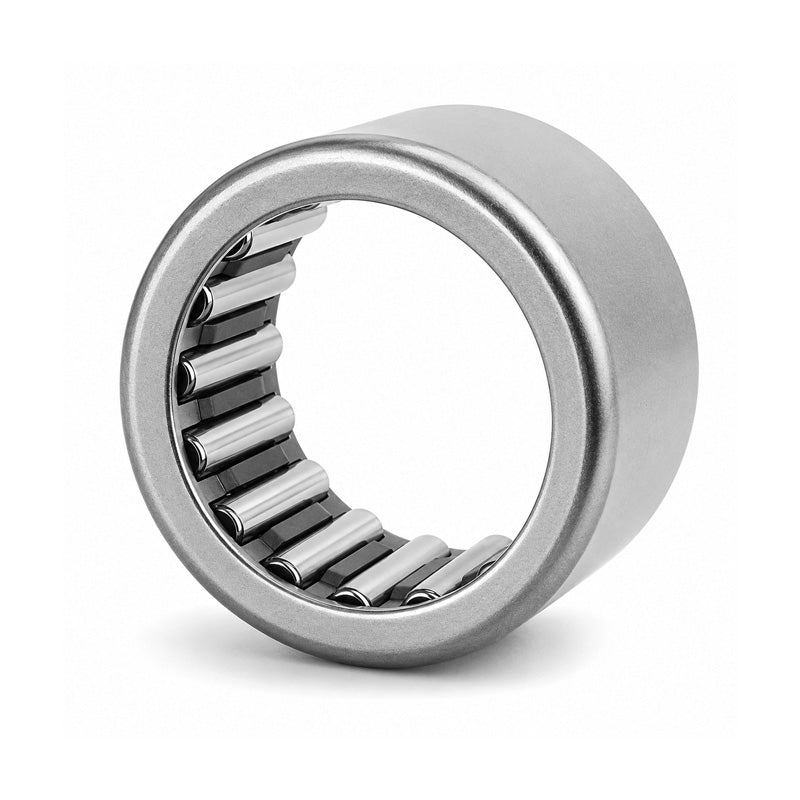

NTN HMK0820T2 Drawn Cup Needle Roller Bearing with Open End 8x15x20mm - Allow 2-3 Days

NTN HMK0820T2 Drawn Cup Needle Roller Bearing with Open End 8x15x20mm - Allow 2-3 Days
Regular price £6.63 ex VAT£7.96inc. VAT
Regular price Sale price £6.63 ex VAT£7.96 inc. VAT
Sale Sold out

In stock

Price Break
3+ £6.56
4+ £6.30
9+ £6.17
19+ £5.97
49+ £5.83
99+ £5.50
499+ £4.64
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Inside diameter 8mm
D - Outside diameter 15mm
C - Width of bearing, drawn cup or outer ring 20mm
Lubrication hole on outer ring? No
Cr - Dynamic load rating 9.05 kN
C0r - Static load rating 8.75 kN
N - Grease lubrication limit speed 20000 tr/min
N - Oil lubrication limit speed 30000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
