SKU: HK6020-MB

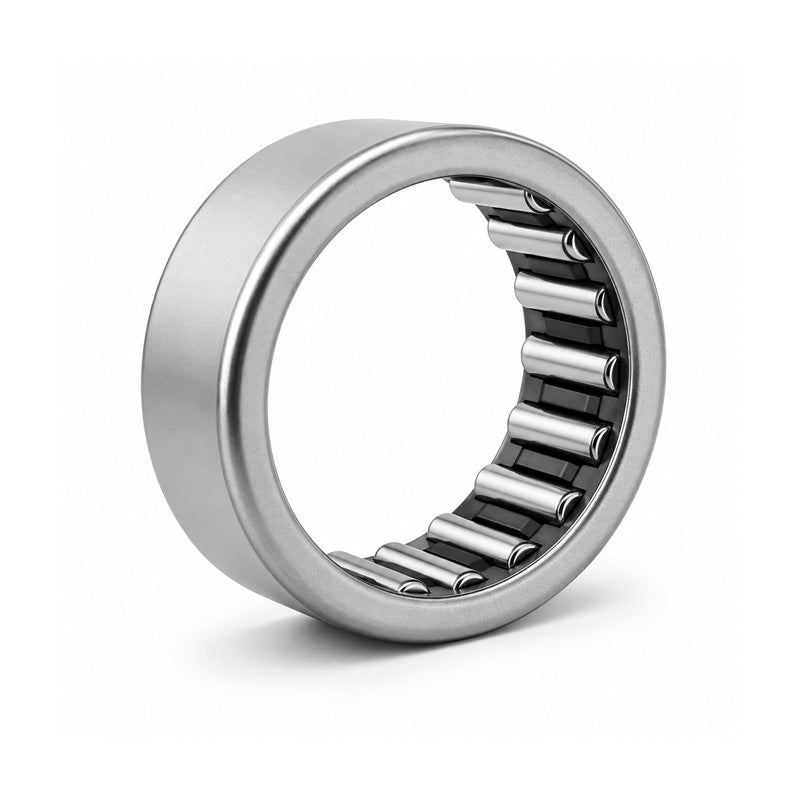

Major Brand HK6020 Drawn Cup Type Needle Roller Bearing with Two Open Ends 60x68x20mm
Major Brand HK6020 Drawn Cup Type Needle Roller Bearing with Two Open Ends 60x68x20mm
Regular price
£14.08
ex VAT£16.90inc. VAT
Regular price
Sale price
£14.08
ex VAT£16.90
inc. VAT
In stock
Price Break
10+
£12.53
19+
£11.83
29+
£11.69
39+
£11.55
49+
£11.40
74+
£11.26
99+
£10.56
199+
£10.42
249+
£10.28
499+
£10.14
999+
£9.86
Description
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 68mm
- Width:
- 20mm
Technical
Technical
| Fw | 60mm |
|---|---|
| D | 68mm |
| C | 20mm |
| Dynamic load | 31900 N |
| Static load | 75000 N |
| Fatigue load limit Pu | 9300 N |
| Speed in grease | 3400 rpm |
| Speed in oil | 4800 rpm |
| r1r2 min | 0.8mm |
| Da max | 63mm |
| ra max | 0.8mm |
| Weight | 81 g |
