SKU: HK5022RS-EU

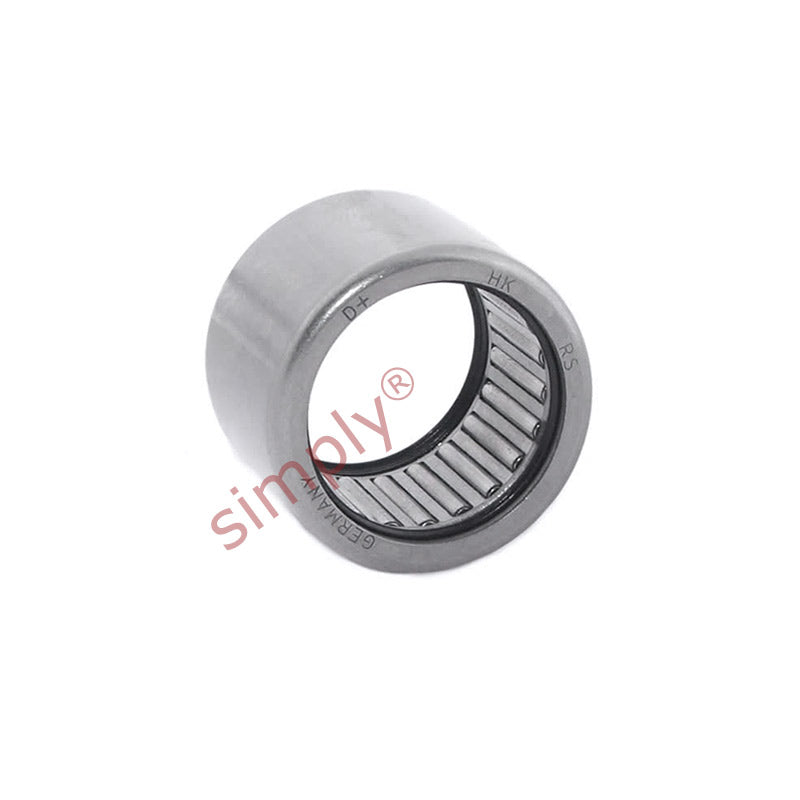

HK5022RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 50x58x22mm
HK5022RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 50x58x22mm
Regular price
£15.92
ex VAT£19.10inc. VAT
Regular price
Sale price
£15.92
ex VAT£19.10
inc. VAT
In stock
Price Break
10+
£14.17
19+
£13.37
29+
£13.21
39+
£13.05
49+
£12.89
74+
£12.73
99+
£11.94
199+
£11.78
249+
£11.62
499+
£11.46
999+
£11.14
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 58mm
- Width:
- 22mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 58mm |
| C | 22mm |
| Dynamic load C | 29200 N |
| Static load Co | 63000 N |
| Fatigue load limit Pu | 7800 N |
| Speed in grease | 3800 rpm |
| r1r2 min | 0.8mm |
| Da max | 53mm |
| ra max | 0.8mm |
| Inner ring | LR/IR45x50x25.5 |
| Weight | 76 g |
