SKU: HK2220-MB

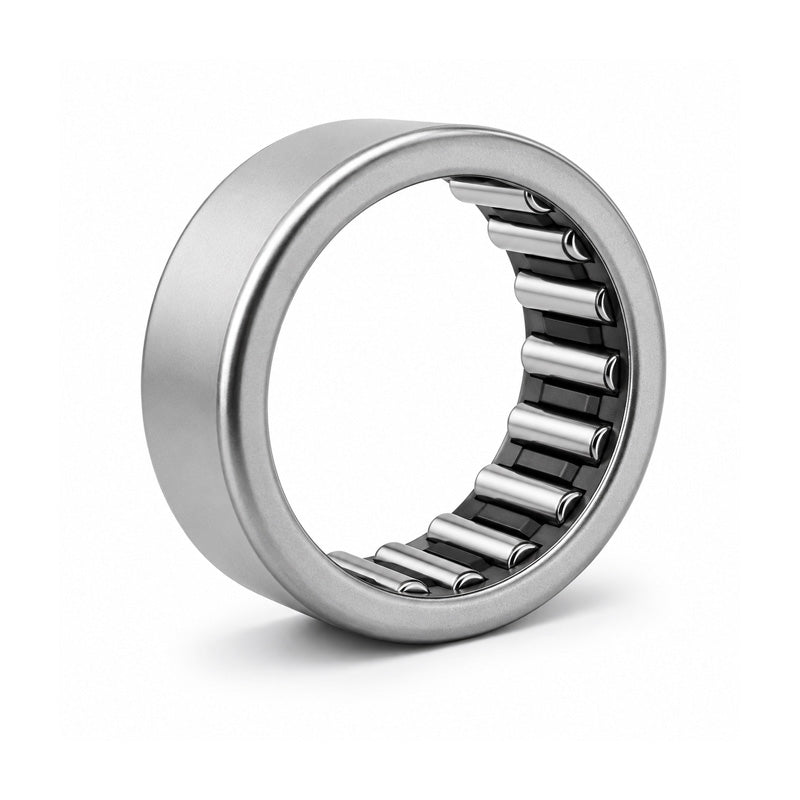

Major Brand HK2220 Drawn Cup Type Needle Roller Bearing with Two Open Ends 22x28x20mm
Major Brand HK2220 Drawn Cup Type Needle Roller Bearing with Two Open Ends 22x28x20mm
Regular price
£6.41
ex VAT£7.69inc. VAT
Regular price
Sale price
£6.41
ex VAT£7.69
inc. VAT
Equivalent to: TLA2220Z RHNA222820
In stock
Price Break
10+
£5.70
19+
£5.38
29+
£5.32
39+
£5.26
49+
£5.19
74+
£5.13
99+
£4.81
199+
£4.74
249+
£4.68
499+
£4.62
999+
£4.49
Description
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Equivalent: TLA2220Z RHNA222820
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 28mm
- Width:
- 20mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 28mm |
| C | 20mm |
| Dynamic load | 15700 N |
| Static load | 29000 N |
| Fatigue load limit Pu | 3450 N |
| Speed in grease | 8000 rpm |
| Speed in oil | 12000 rpm |
| r1r2 min | 0.8mm |
| Da max | 23mm |
| ra max | 0.8mm |
| Inner ring | IR17x22x23 |
| Seal | G/SD22x28x4 |
| Weight | 26 g |
