SKU: HK2216-EU

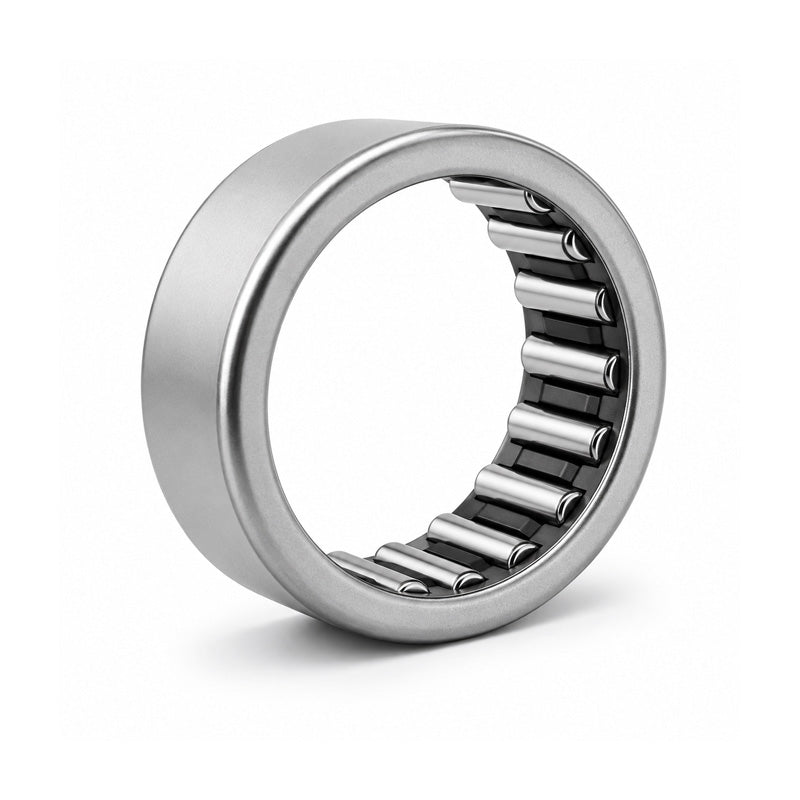

HK2216 Budget Drawn Cup Type Needle Roller Bearing Open End Type 22x28x16mm
HK2216 Budget Drawn Cup Type Needle Roller Bearing Open End Type 22x28x16mm
Regular price
£4.66
ex VAT£5.59inc. VAT
Regular price
Sale price
£4.66
ex VAT£5.59
inc. VAT
Equivalent to: TLA2216Z RHNA222816
In stock
Price Break
10+
£4.14
19+
£3.91
29+
£3.86
39+
£3.82
49+
£3.77
74+
£3.73
99+
£3.49
199+
£3.45
249+
£3.40
499+
£3.35
999+
£3.26
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Equivalent: TLA2216Z RHNA222816
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 28mm
- Width:
- 16mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 28mm |
| C | 16mm |
| Dynamic load C | 13000 N |
| Static load Co | 22400 N |
| Fatigue load limit Pu | 2600 N |
| Speed in grease | 8000 rpm |
| Speed in oil | 12000 rpm |
| r1r2 min | 0.8mm |
| Da max | 23mm |
| ra max | 0.8mm |
| Inner ring | IR17x22x16 |
| Seal | G/SD22x28x4 |
| Weight | 21 g |
