SKU: HK2214RS-EU

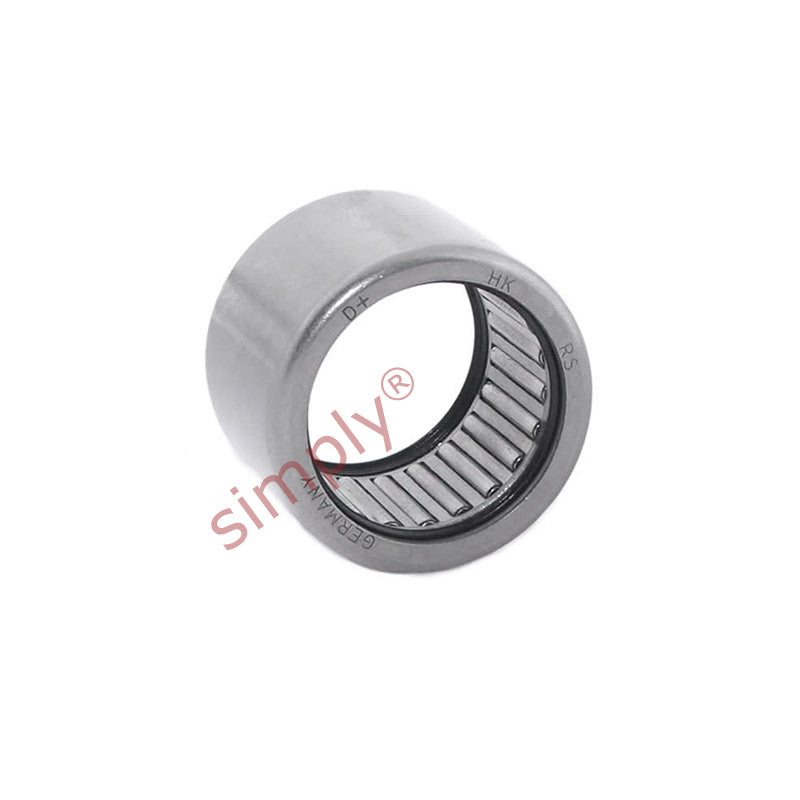

HK2214RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 22x28x14mm
HK2214RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 22x28x14mm
Regular price
£6.69
ex VAT£8.03inc. VAT
Regular price
Sale price
£6.69
ex VAT£8.03
inc. VAT
In stock
Price Break
10+
£5.95
19+
£5.62
29+
£5.55
39+
£5.49
49+
£5.42
74+
£5.35
99+
£5.02
199+
£4.95
249+
£4.88
499+
£4.82
999+
£4.68
Couldn't load pickup availability
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 28mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 28mm |
| C | 14mm |
| Dynamic load C | 8800 N |
| Static load Co | 13700 N |
| Fatigue load limit Pu | 1560 N |
| Speed in grease | 8000 rpm |
| r1r2 min | 0.8mm |
| Da max | 23mm |
| ra max | 0.8mm |
| Inner ring | IR17x22x16 |
| Weight | 16 g |
