SKU: HK1616.2RS-EU

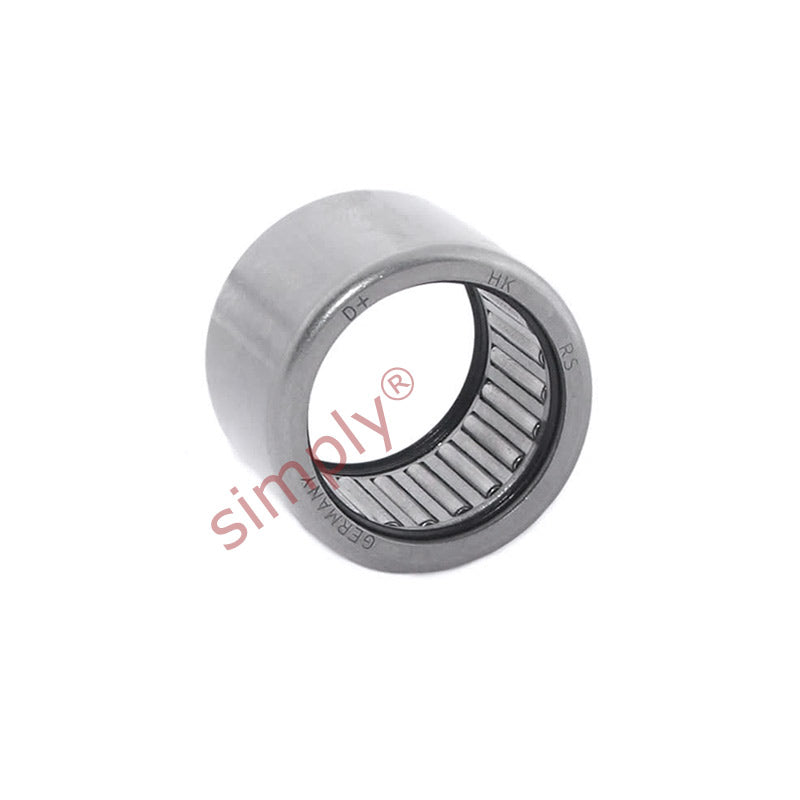

HK16162RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 16x22x16mm
HK16162RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 16x22x16mm
Regular price
£5.68
ex VAT£6.82inc. VAT
Regular price
Sale price
£5.68
ex VAT£6.82
inc. VAT
In stock
Price Break
10+
£5.06
19+
£4.77
29+
£4.71
39+
£4.66
49+
£4.60
74+
£4.54
99+
£4.26
199+
£4.20
249+
£4.15
499+
£4.09
999+
£3.98
Couldn't load pickup availability
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 22mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 22mm |
| C | 16mm |
| Dynamic load C | 7370 N |
| Static load Co | 9800 N |
| Fatigue load limit Pu | 1120 N |
| Speed in grease | 10000 rpm |
| r1r2 min | 0.8mm |
| Da max | 17mm |
| ra max | 0.8mm |
| Inner ring | IR12x16x20 |
| Weight | 14 g |
