SKU: HK1522ZWD-NTN

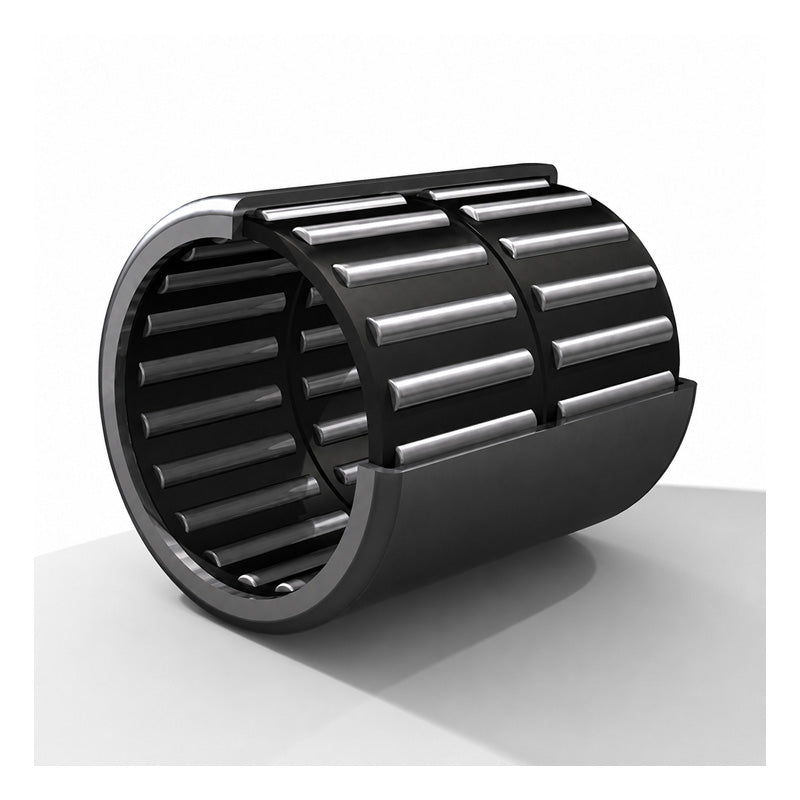

NTN HK1522ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 15x21x22mm
NTN HK1522ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 15x21x22mm
Regular price
£5.73
ex VAT£6.88inc. VAT
Regular price
Sale price
£5.73
ex VAT£6.88
inc. VAT
In stock
Price Break
10+
£5.10
19+
£4.81
29+
£4.76
39+
£4.70
49+
£4.64
74+
£4.58
99+
£4.30
199+
£4.24
249+
£4.18
499+
£4.13
999+
£4.01
Couldn't load pickup availability
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 21mm
- Width:
- 22mm
Technical
Technical

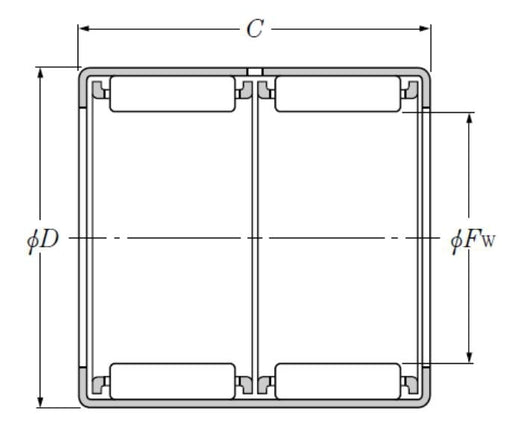

| Fw - Inside diameter | 15mm |
|---|---|
| D - Outside diameter | 21mm |
| C - Width of bearing, drawn cup or outer ring | 22mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 2.5mm |
| Inner ring reference | IR12X15X22.5 |
| Cr - Dynamic load rating | 12.9 kN |
| C0r - Static load rating | 18.2 kN |
| N - Grease lubrication limit speed | 11000 tr/min |
| N - Oil lubrication limit speed | 16000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
