SKU: HK1520.2RS-EU

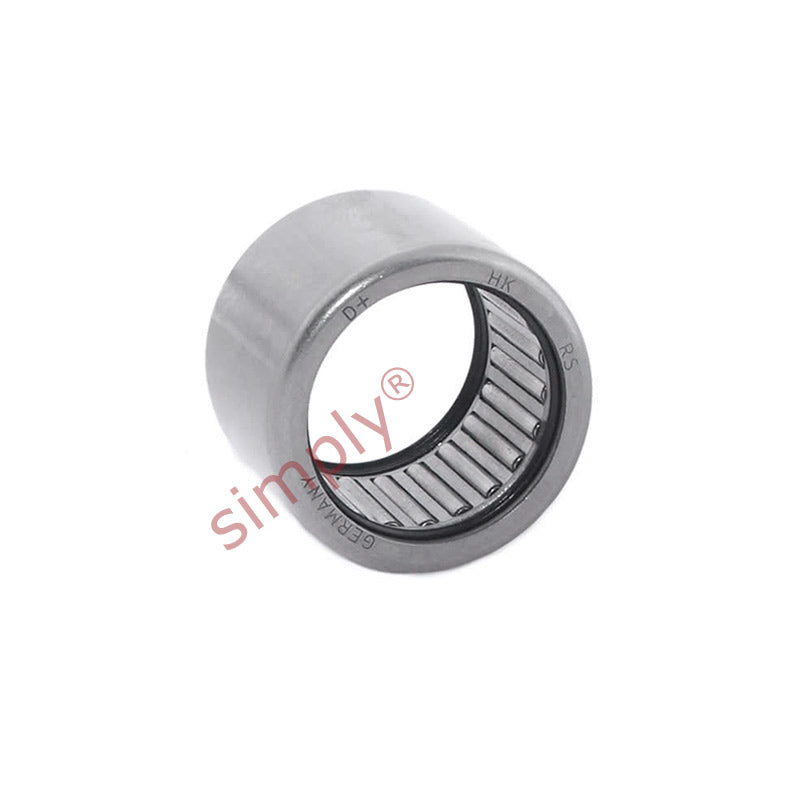

HK15202RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 15x21x20mm
HK15202RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 15x21x20mm
Regular price
£4.88
ex VAT£5.86inc. VAT
Regular price
Sale price
£4.88
ex VAT£5.86
inc. VAT
In stock
Price Break
10+
£4.34
19+
£4.10
29+
£4.05
39+
£4.00
49+
£3.95
74+
£3.90
99+
£3.66
199+
£3.61
249+
£3.56
499+
£3.51
999+
£3.42
Couldn't load pickup availability
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 21mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 21mm |
| C | 20mm |
| Dynamic load C | 10100 N |
| Static load Co | 14600 N |
| Fatigue load limit Pu | 1700 N |
| Speed in grease | 11000 rpm |
| r1r2 min | 0.8mm |
| Da max | 16mm |
| ra max | 0.8mm |
| Inner ring | LR/IR12x15x22.5 |
| Weight | 18 g |
