SKU: HK1518RS-EU

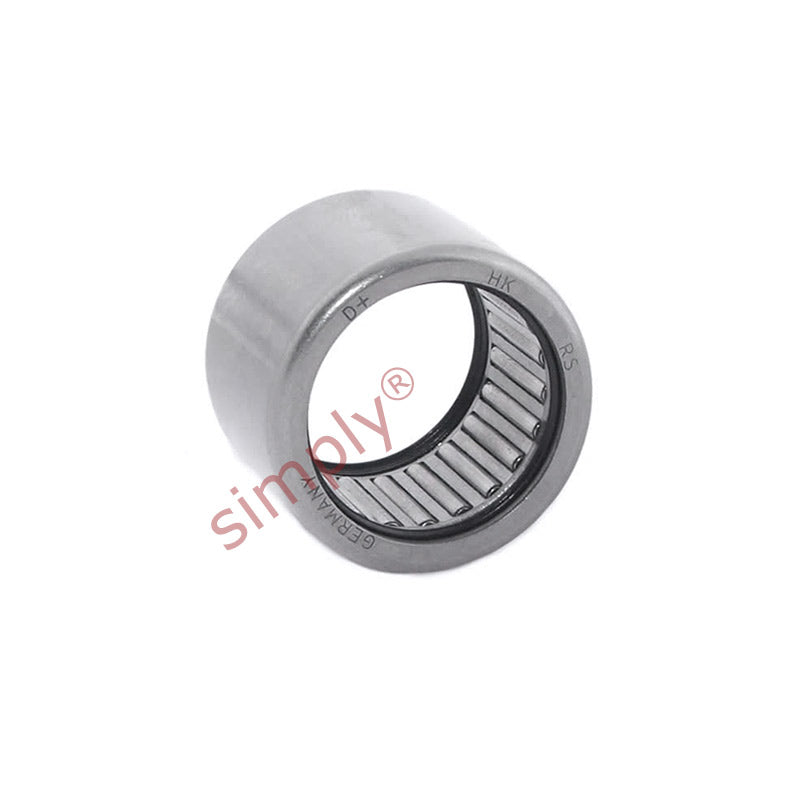

HK1518RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 15x21x18mm
HK1518RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 15x21x18mm
Regular price
£5.51
ex VAT£6.61inc. VAT
Regular price
Sale price
£5.51
ex VAT£6.61
inc. VAT
In stock
Price Break
10+
£4.90
19+
£4.63
29+
£4.57
39+
£4.52
49+
£4.46
74+
£4.41
99+
£4.13
199+
£4.08
249+
£4.02
499+
£3.97
999+
£3.86
Couldn't load pickup availability
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 21mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 21mm |
| C | 18mm |
| Dynamic load C | 10100 N |
| Static load Co | 14600 N |
| Fatigue load limit Pu | 1700 N |
| Speed in grease | 11000 rpm |
| r1r2 min | 0.8mm |
| Da max | 16mm |
| ra max | 0.8mm |
| Weight | 16 g |
