SKU: HK1216.2RS-EU

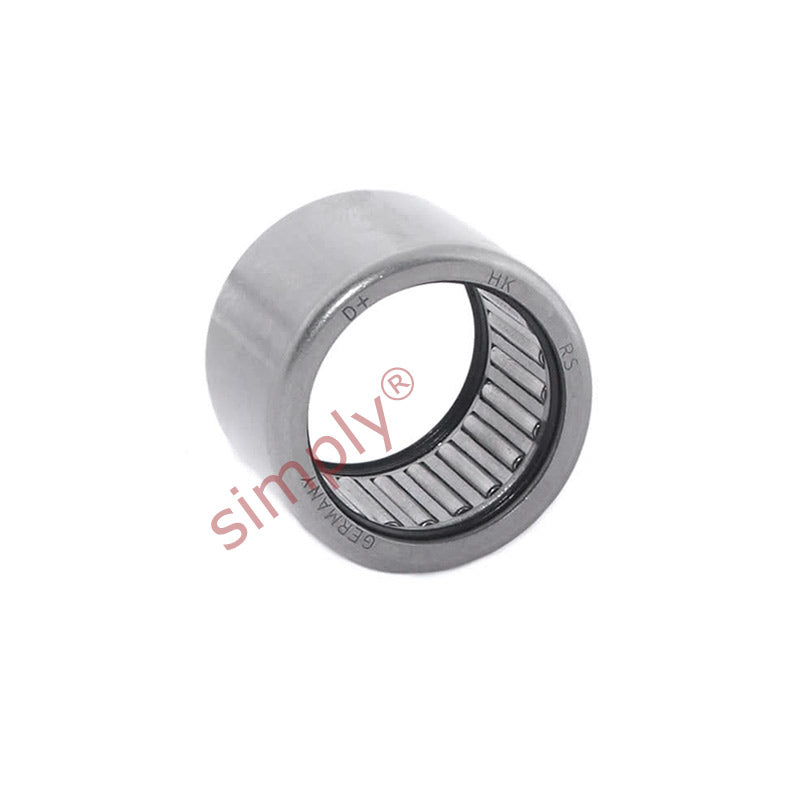

HK12162RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 12x18x16mm
HK12162RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 12x18x16mm
Regular price
£2.20
ex VAT£2.64inc. VAT
Regular price
Sale price
£2.20
ex VAT£2.64
inc. VAT
In stock
Price Break
10+
£1.96
19+
£1.85
29+
£1.83
39+
£1.80
49+
£1.78
74+
£1.76
99+
£1.65
199+
£1.63
249+
£1.61
499+
£1.58
999+
£1.54
Couldn't load pickup availability
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 18mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 18mm |
| C | 16mm |
| Dynamic load C | 6270 N |
| Static load Co | 7350 N |
| Fatigue load limit Pu | 850 N |
| Speed in grease | 12000 rpm |
| r1r2 min | 0.8mm |
| Da max | 13mm |
| ra max | 0.8mm |
| Weight | 11 g |
