SKU: HK1012-RS-EU

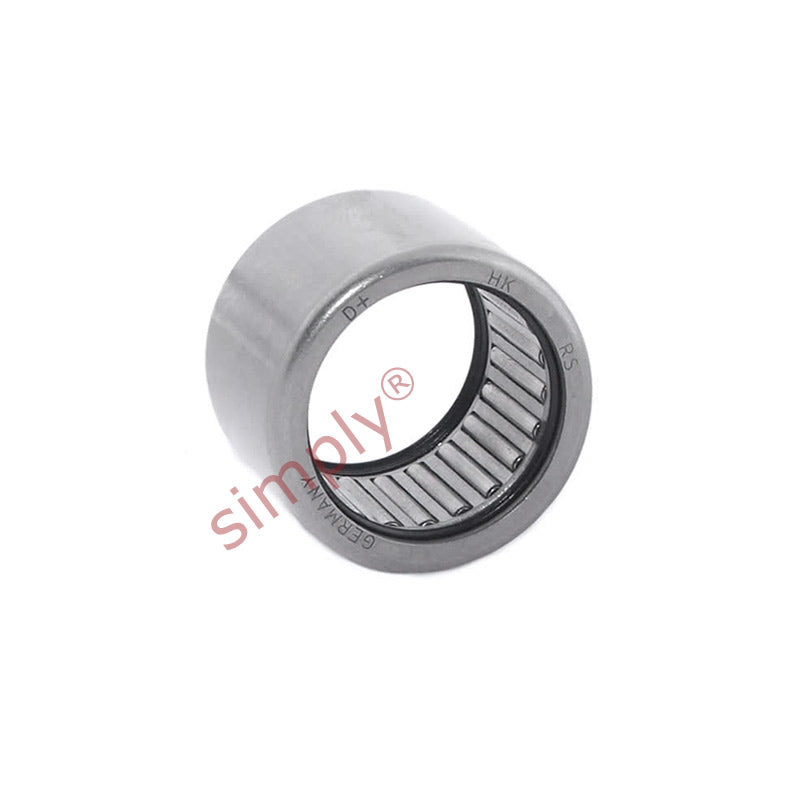

HK1012RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 10x14x12mm
HK1012RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 10x14x12mm
Regular price
£1.79
ex VAT£2.15inc. VAT
Regular price
Sale price
£1.79
ex VAT£2.15
inc. VAT
In stock
Price Break
10+
£1.59
19+
£1.50
29+
£1.49
39+
£1.47
49+
£1.45
74+
£1.43
99+
£1.34
199+
£1.32
249+
£1.31
499+
£1.29
999+
£1.25
Couldn't load pickup availability
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 14mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 10mm |
|---|---|
| D | 14mm |
| C | 12mm |
| Dynamic load C | 4290 N |
| Static load Co | 5300 N |
| Fatigue load limit Pu | 570 N |
| Speed in grease | 13000 rpm |
| r1r2 min | 0.4mm |
| Da max | 10.3mm |
| ra max | 0.4mm |
| Weight | 4.2 g |
