SKU: HK0812.2RS-EU

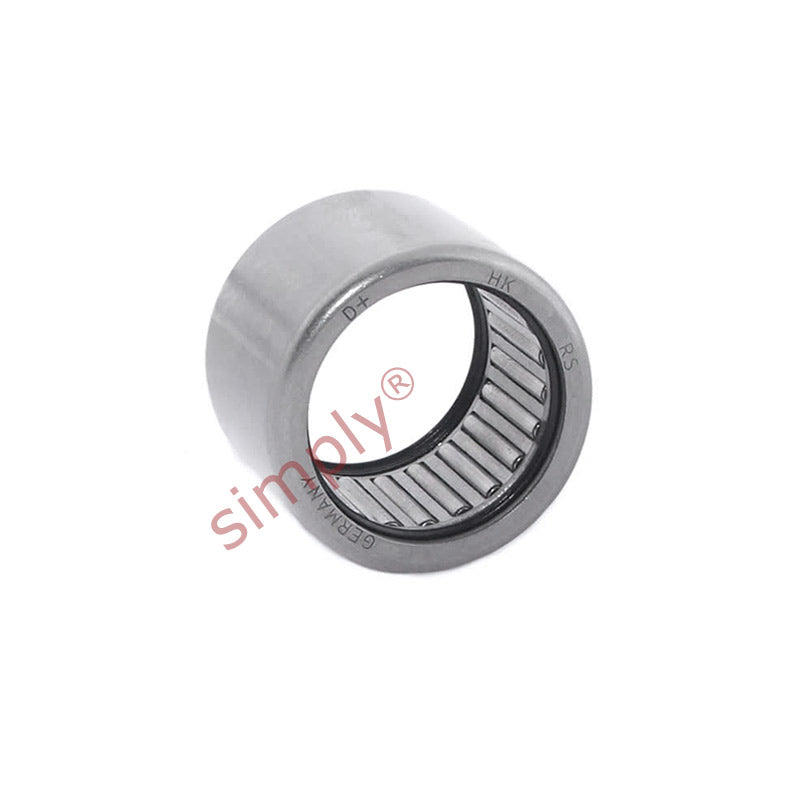

HK08122RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 8x12x12mm
HK08122RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 8x12x12mm
Regular price
£2.37
ex VAT£2.84inc. VAT
Regular price
Sale price
£2.37
ex VAT£2.84
inc. VAT
In stock
Price Break
10+
£2.11
19+
£1.99
29+
£1.97
39+
£1.94
49+
£1.92
74+
£1.90
99+
£1.78
199+
£1.75
249+
£1.73
499+
£1.71
999+
£1.66
Couldn't load pickup availability
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 12mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 8mm |
|---|---|
| D | 12mm |
| C | 12mm |
| Dynamic load C | 2700 N |
| Static load Co | 2750 N |
| Fatigue load limit Pu | 285 N |
| Speed in grease | 14000 rpm |
| r1r2 min | 0.4mm |
| Da max | 8.3mm |
| ra max | 0.4mm |
| Inner ring | IR5x8x16 |
| Weight | 3.3 g |
