SKU: HK0408T2-NTN

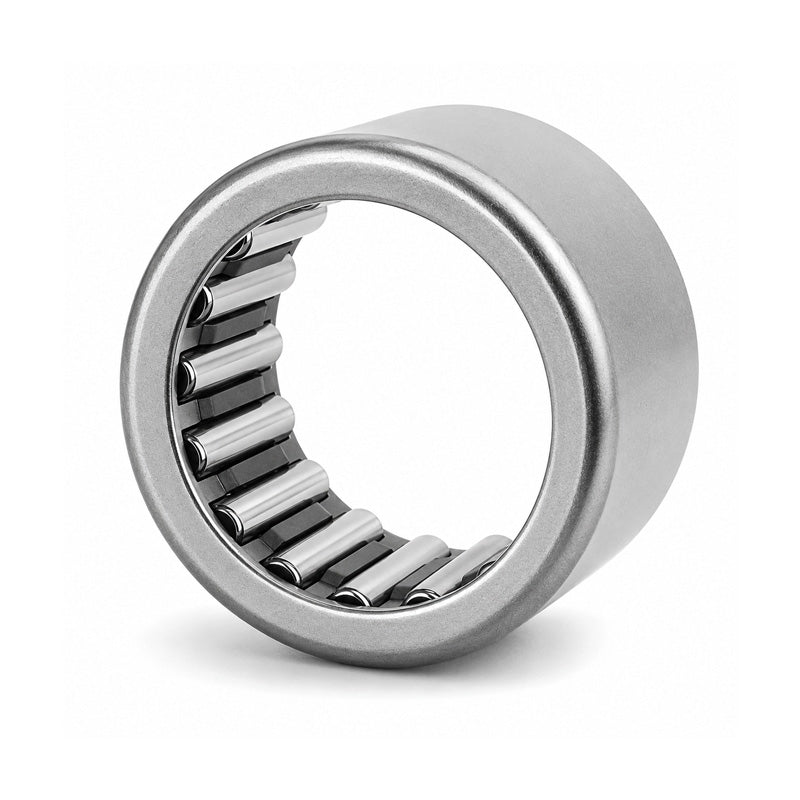

NTN HK0408T2 Drawn Cup Needle Roller Bearing with Open End 4x8x8mm
NTN HK0408T2 Drawn Cup Needle Roller Bearing with Open End 4x8x8mm
Regular price
£4.53
ex VAT£5.44inc. VAT
Regular price
Sale price
£4.53
ex VAT£5.44
inc. VAT
In stock
Price Break
10+
£4.03
19+
£3.81
29+
£3.76
39+
£3.71
49+
£3.67
74+
£3.62
99+
£3.40
199+
£3.35
249+
£3.31
499+
£3.26
999+
£3.17
Couldn't load pickup availability
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 8mm
- Width:
- 8mm
Technical
Technical
| Fw - Inside diameter | 4mm |
|---|---|
| D - Outside diameter | 8mm |
| C - Width of bearing, drawn cup or outer ring | 8mm |
| Lubrication hole on outer ring? | No |
| Cr - Dynamic load rating | 1.77 kN |
| C0r - Static load rating | 1.27 kN |
| N - Grease lubrication limit speed | 30000 tr/min |
| N - Oil lubrication limit speed | 45000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
