SKU: HFL.2530.EU

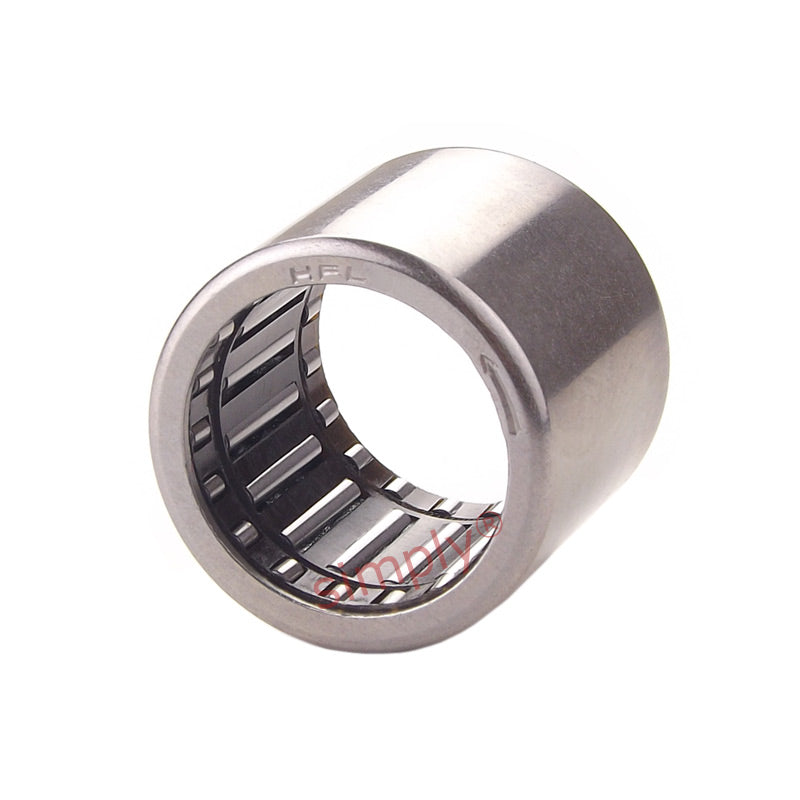

HFL2530 Needle Roller Clutch Type One Way Bearing 25x32x30mm
HFL2530 Needle Roller Clutch Type One Way Bearing 25x32x30mm
Regular price
£10.02
ex VAT£12.02inc. VAT
Regular price
Sale price
£10.02
ex VAT£12.02
inc. VAT
In stock
Price Break
10+
£8.92
19+
£8.42
29+
£8.32
39+
£8.22
49+
£8.12
74+
£8.02
99+
£7.52
199+
£7.41
249+
£7.31
499+
£7.21
999+
£7.01
Share this product
Description
Description
|
Budget Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 30mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 32mm |
| C | 30mm |
| Tolerance | 0.3mm |
| r min | 0.3 |
| Torque | 66 N m |
| Speed (rotating shaft) | 5500 rpm |
| Speed (rotating outer ring) | 5500 rpm |
| Weight | 44 g |
