SKU: HFL.0615.MB

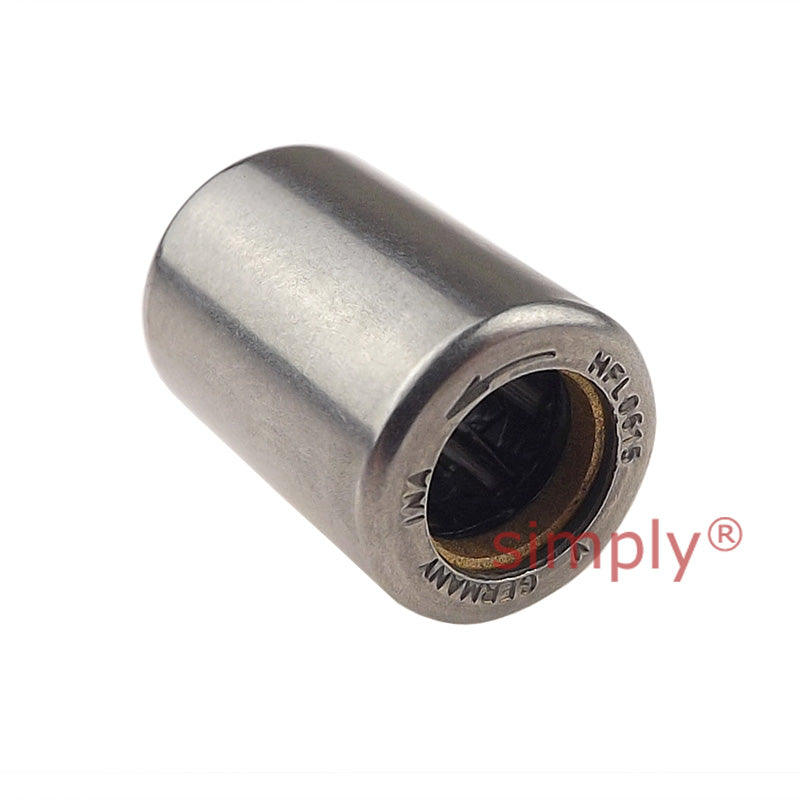

Branded HFL0615 Needle Roller Clutch Type One Way Bearing 6x10x15mm
Branded HFL0615 Needle Roller Clutch Type One Way Bearing 6x10x15mm
Regular price
£22.20
ex VAT£26.64inc. VAT
Regular price
Sale price
£22.20
ex VAT£26.64
inc. VAT
In stock
Price Break
10+
£19.76
19+
£18.65
29+
£18.43
39+
£18.21
49+
£17.99
74+
£17.76
99+
£16.65
199+
£16.43
249+
£16.21
499+
£15.99
999+
£15.54
Share this product
Description
Description
|
Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 10mm
- Width:
- 15mm
Technical
Technical
| Fw | 6mm |
|---|---|
| D | 10mm |
| C | 15mm |
| Tolerance | 0.3mm |
| r min | 0.3 |
| Torque | 1.76 N m |
| Speed (rotating shaft) | 23000 rpm |
| Speed (rotating outer ring) | 13000 rpm |
| Weight | 4 g |
