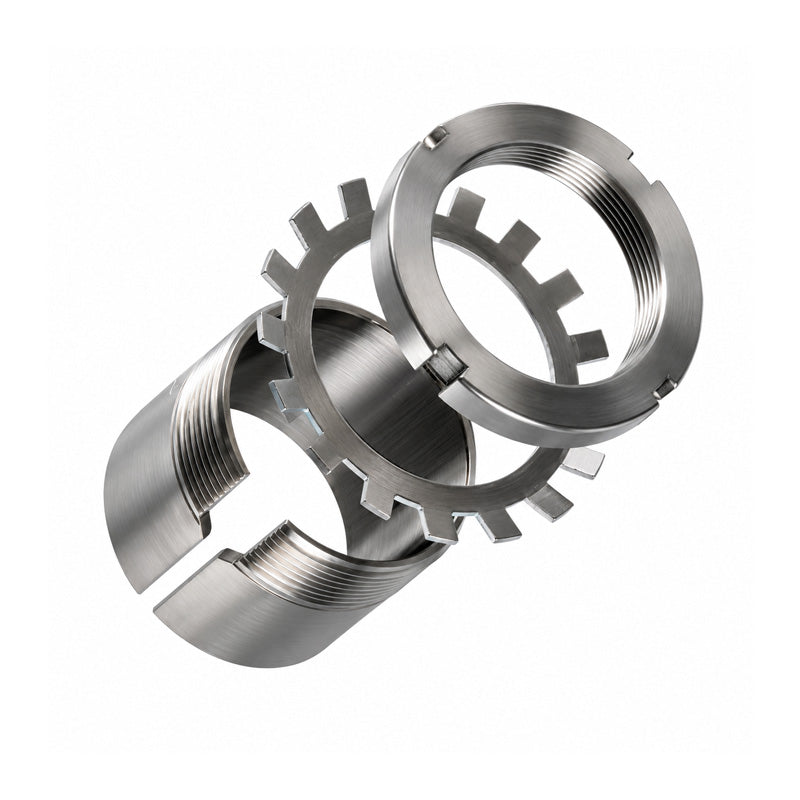

• HE3140 Budget Imperial Adaptor Sleeve for 7 inch Shaft
1 1

SKU: HE3140-EU

HE3140 Budget Imperial Adaptor Sleeve for 7 inch Shaft

HE3140 Budget Imperial Adaptor Sleeve for 7 inch Shaft
£663.68 ex VAT£796.42inc. VAT
£663.68 ex VAT£796.42 inc. VAT
Sale Sold out

In stock

Price Break
10+ £590.68
19+ £557.49
29+ £550.86
39+ £544.22
49+ £537.58
74+ £530.95
99+ £497.76
199+ £491.13
249+ £484.49
499+ £477.85
999+ £464.58
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
177.8mm = 7 inch
Outside Diameter:
250mm
Width:
150mm
Technical
--- Dimensions
d1 177.8mm (7) inch
d 200mm
d3 250mm
B1 150mm
B2 31.5mm
G Thread 200x3mm
Weight 12.3 kg
--- Assembly Parts
Sleeve HE3140
Nut KM40
Washer MB40
Hydraulic nut HMV40E
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23140K+taper>23140K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22240K+taper>22240K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C3140K+taper>C3140K</a>
