SKU: HCFL214

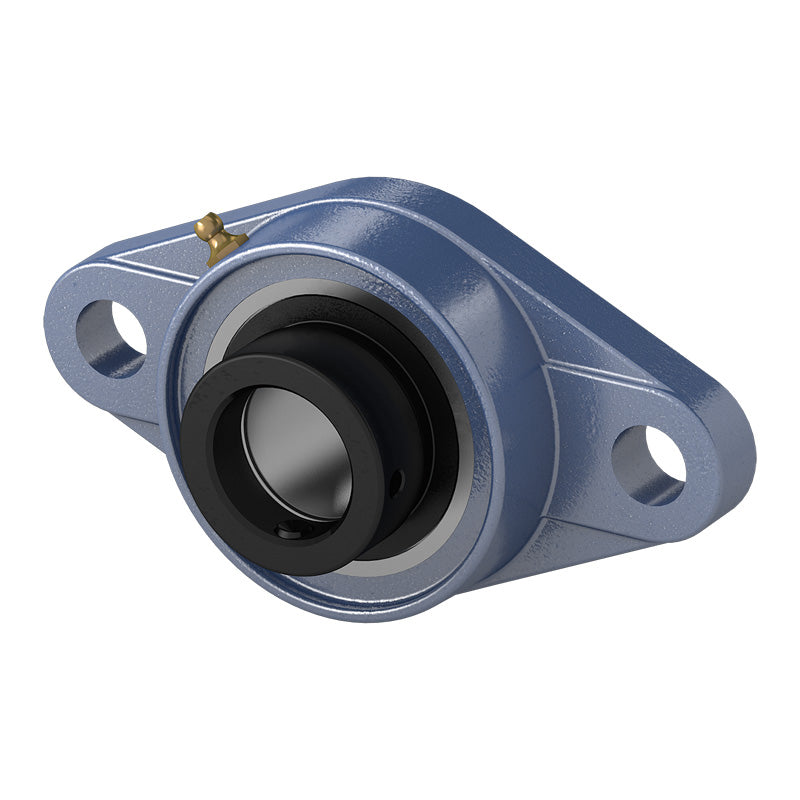

HCFL214 Metric Two Bolt Cast Iron Oval Housing with 70mm Eccentric Collar Insert
HCFL214 Metric Two Bolt Cast Iron Oval Housing with 70mm Eccentric Collar Insert
Regular price
£85.67
ex VAT£102.80inc. VAT
Regular price
Sale price
£85.67
ex VAT£102.80
inc. VAT
In stock
Price Break
10+
£76.25
19+
£71.96
29+
£71.11
39+
£70.25
49+
£69.39
74+
£68.54
99+
£64.25
199+
£63.40
249+
£62.54
499+
£61.68
999+
£59.97
Couldn't load pickup availability
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Style:
- HCFL
- Bolt Hole Centres:
- 216mm
Technical
Technical
| d | 70mm |
|---|---|
| a | 265mm |
| e | 216mm |
| i | 31mm |
| g | 22mm |
| l | 54mm |
| s | 23mm |
| b | 160mm |
| z | 82.6mm |
| B1 | 85.7mm |
| n | 34.1mm |
| Bolt size | M20 |
| Bearing no | HC214 |
| Housing no | FL214 |
| Weight | 5.53 kg |
