SKU: HCFL213
HCFL213 Metric Two Bolt Cast Iron Oval Housing with 65mm Eccentric Collar Insert
HCFL213 Metric Two Bolt Cast Iron Oval Housing with 65mm Eccentric Collar Insert
Regular price
£70.58
ex VAT£84.70inc. VAT
Regular price
Sale price
£70.58
ex VAT£84.70
inc. VAT
In stock
Price Break
3+
£62.82
4+
£59.29
9+
£58.58
19+
£57.87
49+
£57.17
99+
£56.46
499+
£52.93
999+
£52.23
1999+
£51.52
2999+
£50.82
4999+
£49.41
Share this product
Description
Description

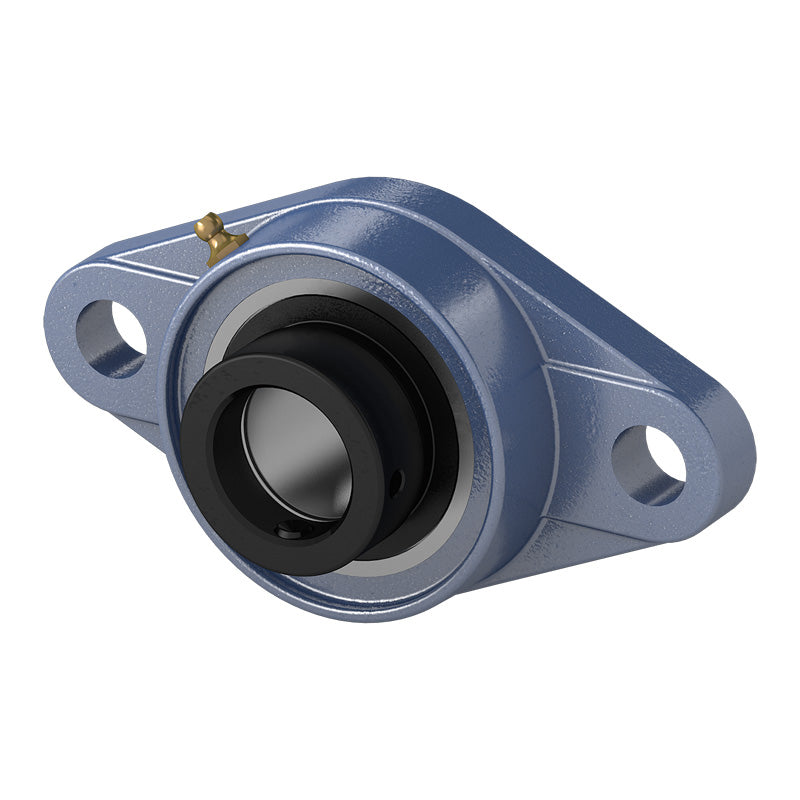

HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- HCFL
- Bolt Hole Centres:
- 210mm
Technical
Technical
| d | 65mm |
|---|---|
| a | 258mm |
| e | 210mm |
| i | 30mm |
| g | 22mm |
| l | 50mm |
| s | 23mm |
| b | 155mm |
| z | 81.6mm |
| B1 | 85.7mm |
| n | 34.1mm |
| Bolt size | M20 |
| Bearing no | HC213 |
| Housing no | FL213 |
| Weight | 5.1 kg |
