SKU: HCFL211

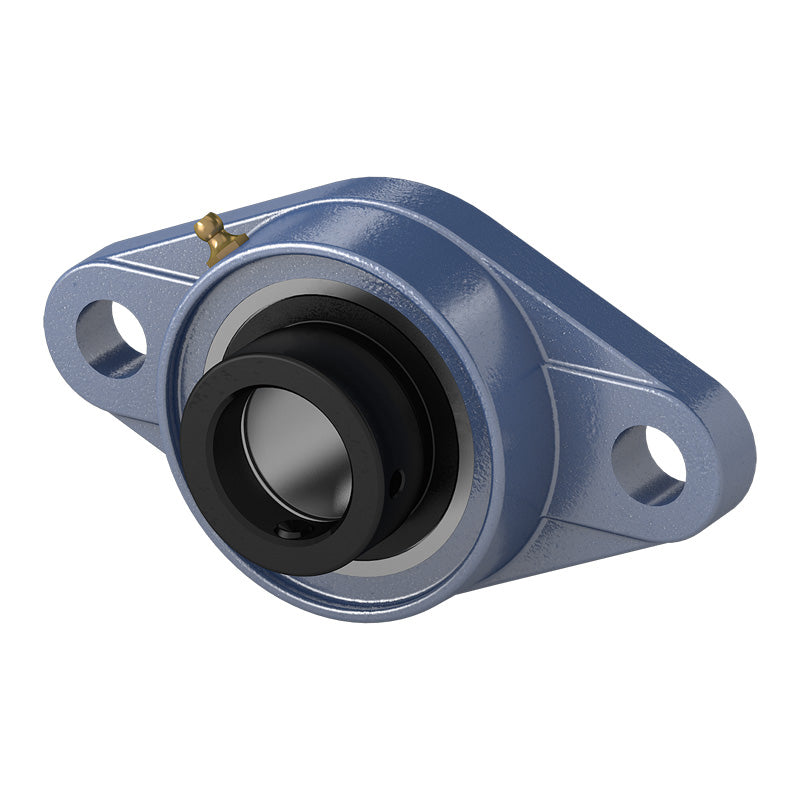

HCFL211 Metric Two Bolt Cast Iron Oval Housing with 55mm Eccentric Collar Insert
HCFL211 Metric Two Bolt Cast Iron Oval Housing with 55mm Eccentric Collar Insert
Regular price
£62.81
ex VAT£75.37inc. VAT
Regular price
Sale price
£62.81
ex VAT£75.37
inc. VAT
In stock
Price Break
3+
£55.90
4+
£52.76
9+
£52.14
19+
£51.51
49+
£50.88
99+
£50.25
499+
£47.11
999+
£46.48
1999+
£45.85
2999+
£45.23
4999+
£43.97
Share this product
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Style:
- HCFL
- Bolt Hole Centres:
- 184mm
Technical
Technical
| d | 55mm |
|---|---|
| a | 224mm |
| e | 184mm |
| i | 25mm |
| g | 18mm |
| l | 43mm |
| s | 19mm |
| b | 130mm |
| z | 68.6mm |
| B1 | 71.4mm |
| n | 27.8mm |
| Bolt size | M16 |
| Bearing no | HC211 |
| Housing no | FL211 |
| Weight | 3.06 kg |
