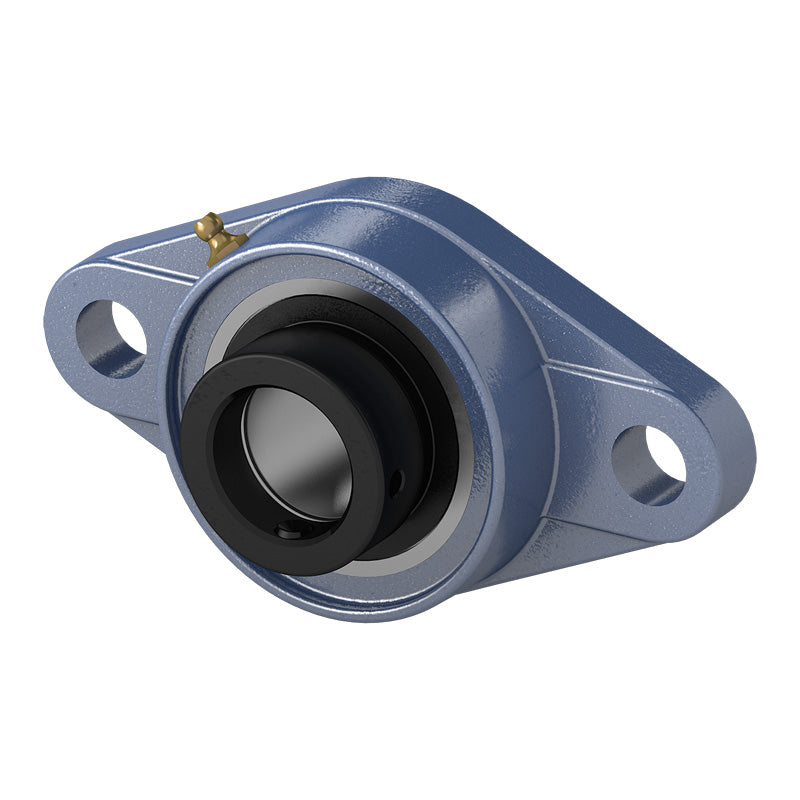

HCFL210 Metric Two Bolt Cast Iron Oval Housing with 50mm Eccentric Collar Insert
HCFL210 Metric Two Bolt Cast Iron Oval Housing with 50mm Eccentric Collar Insert
Regular price
£41.69
ex VAT£50.03inc. VAT
Regular price
Sale price
£41.69
ex VAT£50.03
inc. VAT
In stock
Price Break
3+
£37.10
4+
£35.02
9+
£34.60
19+
£34.18
49+
£33.77
99+
£33.35
499+
£31.26
999+
£30.85
1999+
£30.43
2999+
£30.01
4999+
£29.18
Share this product
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- HCFL
- Bolt Hole Centres:
- 157mm
Technical
Technical
| d | 50mm |
|---|---|
| a | 197mm |
| e | 157mm |
| i | 22mm |
| g | 15mm |
| l | 40mm |
| s | 19mm |
| b | 115mm |
| z | 60.1mm |
| B1 | 62.7mm |
| n | 24.6mm |
| Bolt size | M16 |
| Bearing no | HC210 |
| Housing no | FL210 |
| Weight | 2.21 kg |
