SKU: HCFL207-22

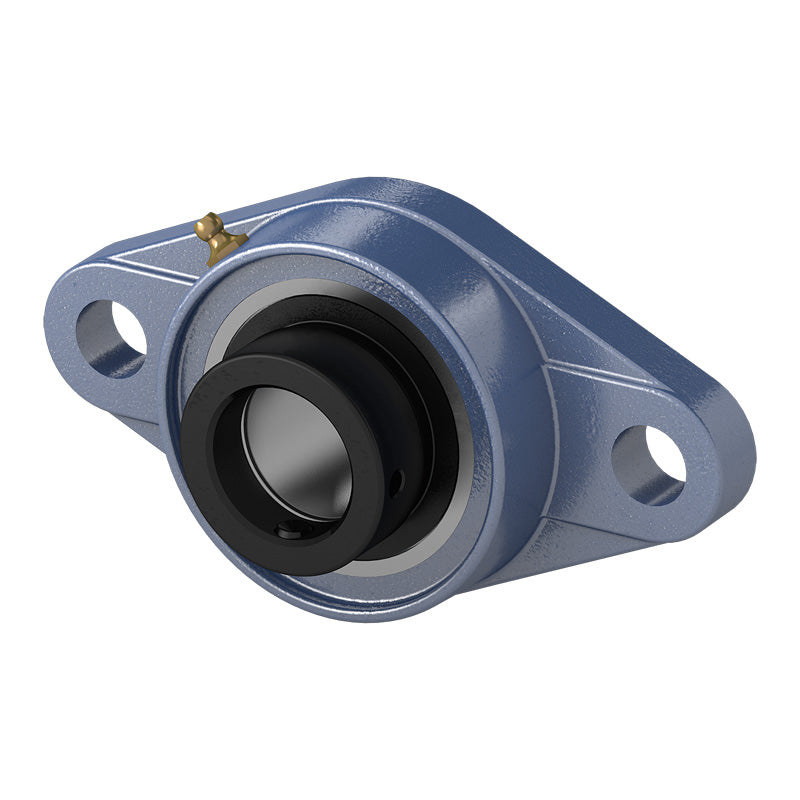

HCFL207-22 Imperial Two Bolt Cast Iron Oval Housing with 1-3/8 inch Eccentric Collar Insert
HCFL207-22 Imperial Two Bolt Cast Iron Oval Housing with 1-3/8 inch Eccentric Collar Insert
Regular price
£27.42
ex VAT£32.90inc. VAT
Regular price
Sale price
£27.42
ex VAT£32.90
inc. VAT
In stock
Price Break
10+
£24.40
19+
£23.03
29+
£22.76
39+
£22.48
49+
£22.21
74+
£21.94
99+
£20.57
199+
£20.29
249+
£20.02
499+
£19.74
999+
£19.19
Couldn't load pickup availability
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- HCFL
- Bolt Hole Centres:
- 130.18mm = 5.125 (5-1/8) inch
Technical
Technical
| d | 1-3/8 inch |
|---|---|
| a | 6-11/32 inch |
| e | 5-1/8 inch |
| i | 3/4 inch |
| g | 35/64 inch |
| l | 1-11/32 inch |
| s | 5/8 inch |
| b | 3-35/64 inch |
| z | 2-1/64 inch |
| B1 | 2.012 inch |
| n | 0.74 inch |
| Bolt size | 1/2 inch |
| Bearing no | HC207-22 |
| Housing no | FL207 |
| Weight | 1.24 kg |
