SKU: HCFL207

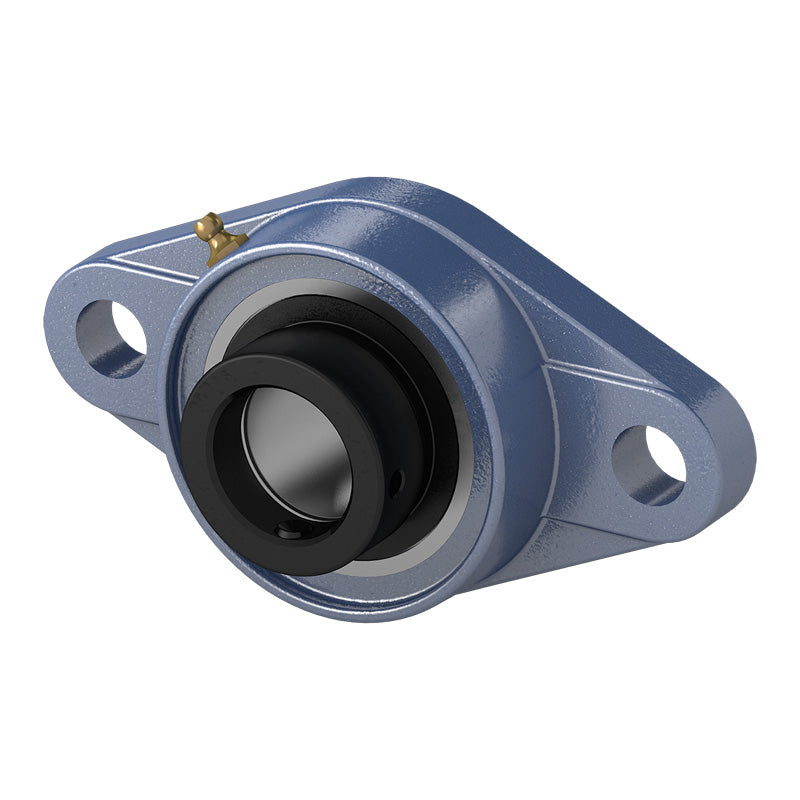

HCFL207 Metric Two Bolt Cast Iron Oval Housing with 35mm Eccentric Collar Insert
HCFL207 Metric Two Bolt Cast Iron Oval Housing with 35mm Eccentric Collar Insert
Regular price
£14.63
ex VAT£17.56inc. VAT
Regular price
Sale price
£14.63
ex VAT£17.56
inc. VAT
In stock
Price Break
10+
£13.02
19+
£12.29
29+
£12.14
39+
£12.00
49+
£11.85
74+
£11.70
99+
£10.97
199+
£10.83
249+
£10.68
499+
£10.53
999+
£10.24
Couldn't load pickup availability
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- HCFL
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 35mm |
|---|---|
| a | 161mm |
| e | 130mm |
| i | 19mm |
| g | 14mm |
| l | 34mm |
| s | 16mm |
| b | 90mm |
| z | 51.3mm |
| B1 | 51.1mm |
| n | 18.8mm |
| Bolt size | M14 |
| Bearing no | HC207 |
| Housing no | FL207 |
| Weight | 1.24 kg |
