SKU: HCFL206

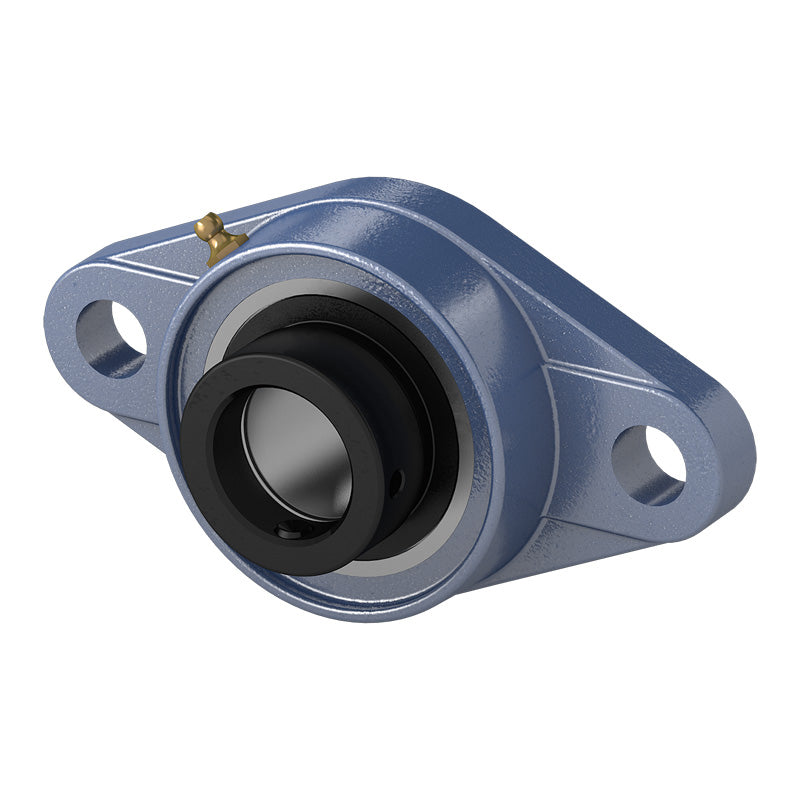

HCFL206 Metric Two Bolt Cast Iron Oval Housing with 30mm Eccentric Collar Insert
HCFL206 Metric Two Bolt Cast Iron Oval Housing with 30mm Eccentric Collar Insert
Regular price
£16.89
ex VAT£20.27inc. VAT
Regular price
Sale price
£16.89
ex VAT£20.27
inc. VAT
In stock
Price Break
10+
£15.03
19+
£14.19
29+
£14.02
39+
£13.85
49+
£13.68
74+
£13.51
99+
£12.67
199+
£12.50
249+
£12.33
499+
£12.16
999+
£11.82
Couldn't load pickup availability
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- HCFL
- Bolt Hole Centres:
- 117mm
Technical
Technical
| d | 30mm |
|---|---|
| a | 148mm |
| e | 117mm |
| i | 18mm |
| g | 13mm |
| l | 31mm |
| s | 16mm |
| b | 80mm |
| z | 48.1mm |
| B1 | 48.4mm |
| n | 18.3mm |
| Bolt size | M14 |
| Bearing no | HC206 |
| Housing no | FL206 |
| Weight | 0.9 kg |
