SKU: HCFL204-12

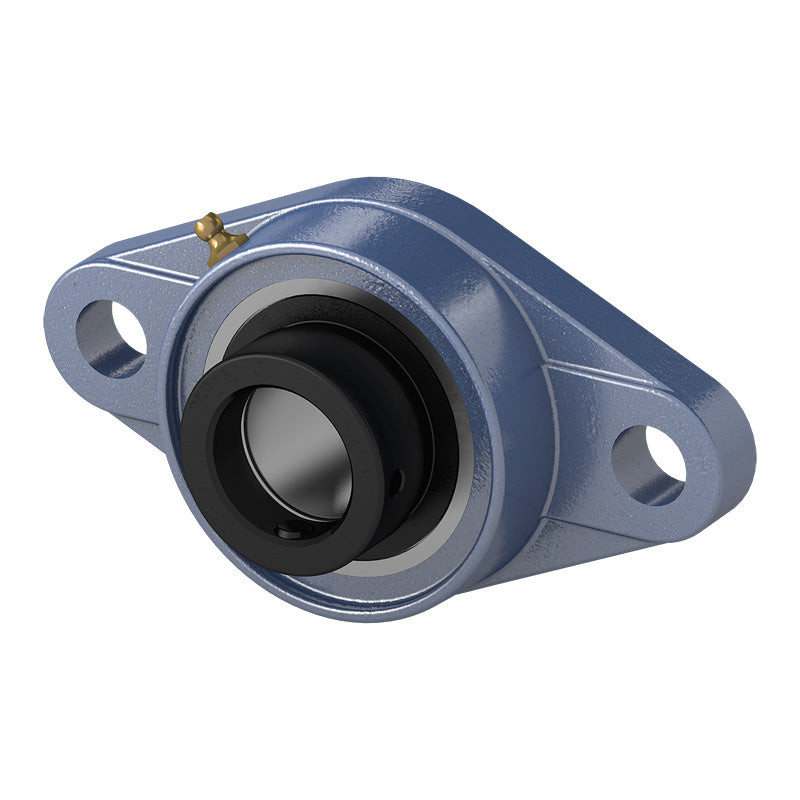

HCFL204-12 Imperial Two Bolt Cast Iron Oval Housing with 3/4 inch Eccentric Collar Insert
HCFL204-12 Imperial Two Bolt Cast Iron Oval Housing with 3/4 inch Eccentric Collar Insert
Regular price
£12.22
ex VAT£14.66inc. VAT
Regular price
Sale price
£12.22
ex VAT£14.66
inc. VAT
In stock
Price Break
10+
£10.88
19+
£10.26
29+
£10.14
39+
£10.02
49+
£9.90
74+
£9.78
99+
£9.17
199+
£9.04
249+
£8.92
499+
£8.80
999+
£8.55
Couldn't load pickup availability
Description
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- HCFL
- Bolt Hole Centres:
- 90.09mm = 3.547 (3-35/64) inch
Technical
Technical
| d | 3/4 inch |
|---|---|
| a | 4-7/16 inch |
| e | 3-35/64 inch |
| i | 19/32 inch |
| g | 7/16 inch |
| l | 1 inch |
| s | 15/32 inch |
| b | 2-3/8 inch |
| z | 1-41/64 inch |
| B1 | 1.72 inch |
| n | 0.673 inch |
| Bolt size | 3/8 inch |
| Bearing no | HC204-12 |
| Housing no | FL204 |
| Weight | 0.46 kg |
