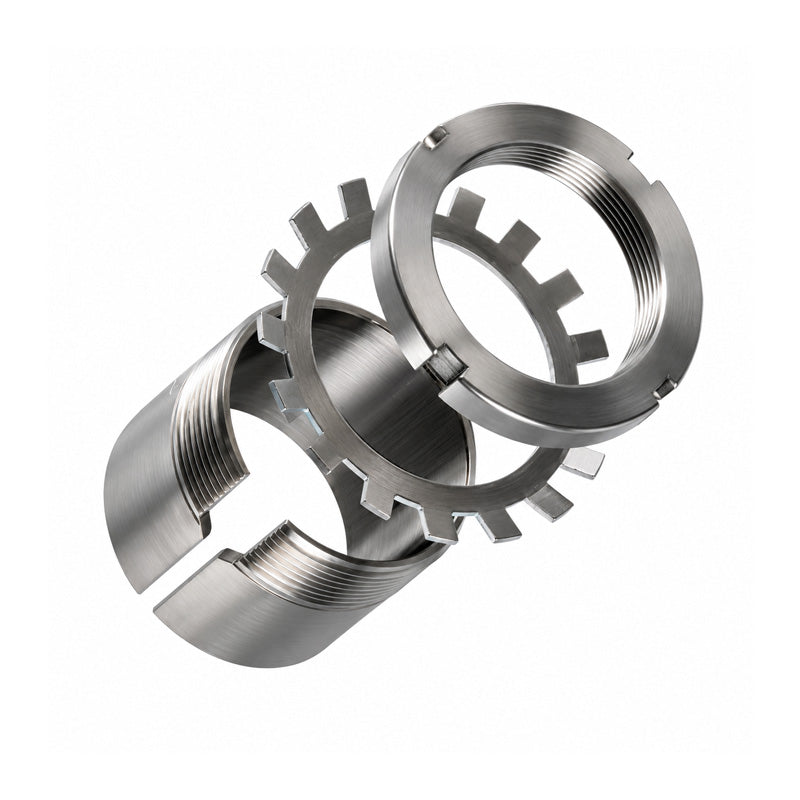

SKF HA311 Imperial Adaptor Sleeve for 1-15/16 inch Shaft

SKF HA311 Imperial Adaptor Sleeve for 1-15/16 inch Shaft
£31.35 ex VAT£37.62inc. VAT
£31.35 ex VAT£37.62 inc. VAT
Sale Sold out

In stock

Price Break
2+ £27.90
5+ £26.33
10+ £26.02
20+ £25.71
49+ £25.39
74+ £25.08
99+ £23.51
199+ £23.20
249+ £22.89
499+ £22.57
999+ £21.95
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Outside Diameter:
75mm
Width:
45mm
Technical
--- Dimensions
d1 49.21mm (1-15/16)inch
d 55mm
d3 75mm
B1 45mm
B2 12.5mm
G Thread 55x2mm
Weight 0.34 kg
--- Assembly Parts
Sleeve HA311
Nut KM11
Washer MB11
Hydraulic nut HMV11E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2211K+taper>2211K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1311K+taper>1311K</a>
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22211K+taper>22211K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21311K+taper>21311K</a>
