SKU: H322-SKF

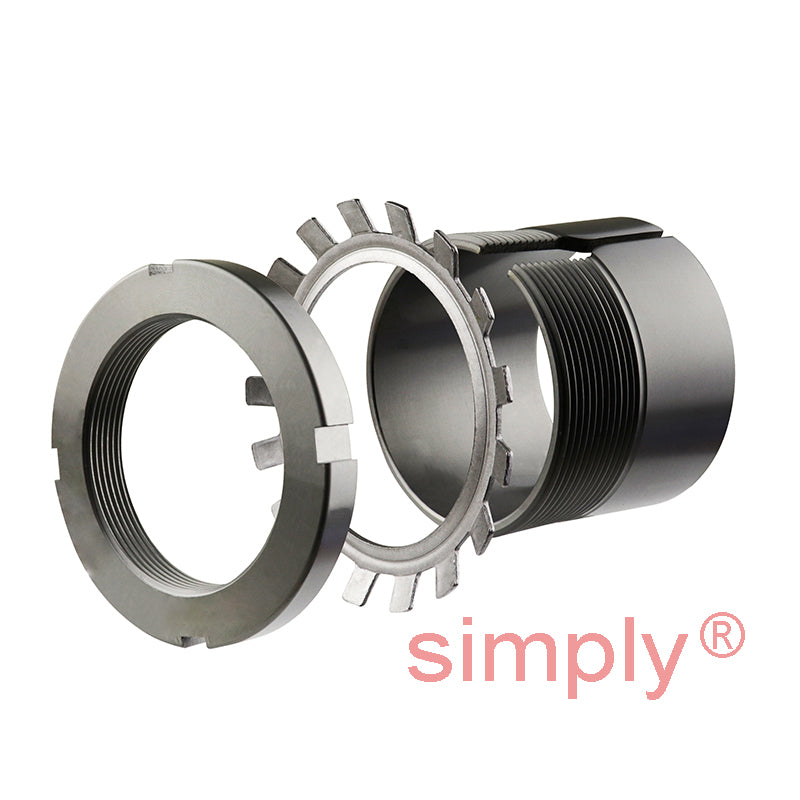

SKF H322 Adaptor Sleeve with Lock Nut and Locking Device for 100mm Shaft
SKF H322 Adaptor Sleeve with Lock Nut and Locking Device for 100mm Shaft
Regular price
£124.61
ex VAT£149.53inc. VAT
Regular price
Sale price
£124.61
ex VAT£149.53
inc. VAT
In stock
Price Break
2+
£110.90
5+
£104.67
10+
£103.43
20+
£102.18
49+
£100.94
74+
£99.69
99+
£93.46
199+
£92.21
249+
£90.97
499+
£89.72
999+
£87.23
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 145mm
- Width:
- 77mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 100mm |
| d | 110mm |
| d3 | 145mm |
| B1 | 77mm |
| B2 | 21mm |
| G | Thread 110x2mm |
| Weight | 2.04 kg |
| --- | Assembly Parts |
| Sleeve | H322 |
| Nut | KM22 |
| Washer | MB22 |
| Hydraulic nut | HMV22E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2222K+taper+self+open>2222K</a> |
| --- | Matching Spherical Roller Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1322K+taper+self+open>1322K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23022K+taper>23022K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22222K+taper>22222K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21322K+taper>21322K</a> |
