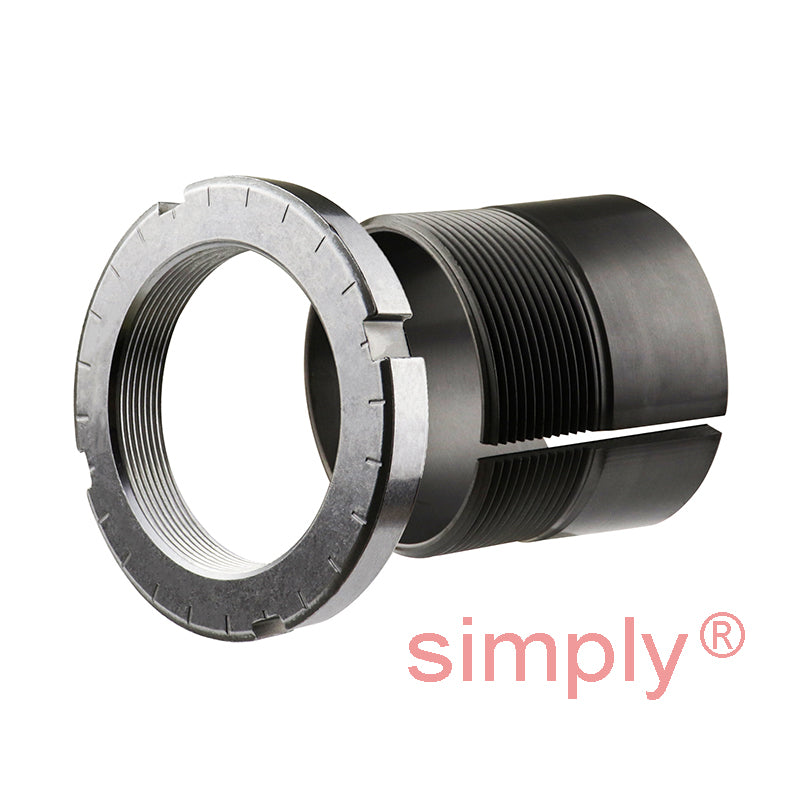

SKF H318E Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft

Name: SKF H318E Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft
Brand: SKF
SKU: H318E-SKF
Price: 84.23 GBP
Availability: InStock

£84.23 ex VAT£101.08inc. VAT

£84.23 ex VAT£101.08 inc. VAT

Sale Sold out

In stock

Price Break

2+ £74.96

5+ £70.75

10+ £69.91

20+ £69.07

49+ £68.22

74+ £67.38

99+ £63.17

199+ £62.33

249+ £61.49

499+ £60.64

999+ £58.96

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 80mm
Outside Diameter:: 120mm
Width:: 65mm

Technical

---	Dimensions
d1	80mm
d	90mm
d3	120mm
B1	65mm
B2	19mm
G	Thread 90x2mm
Weight	1.43 kg
---	Assembly Parts
Sleeve	H318E
Nut	KMFE18
Hydraulic nut	HMV18E
---	Matching Carb Toroidal Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2218K+taper>C2218K</a>
