SKU: H317-SKF

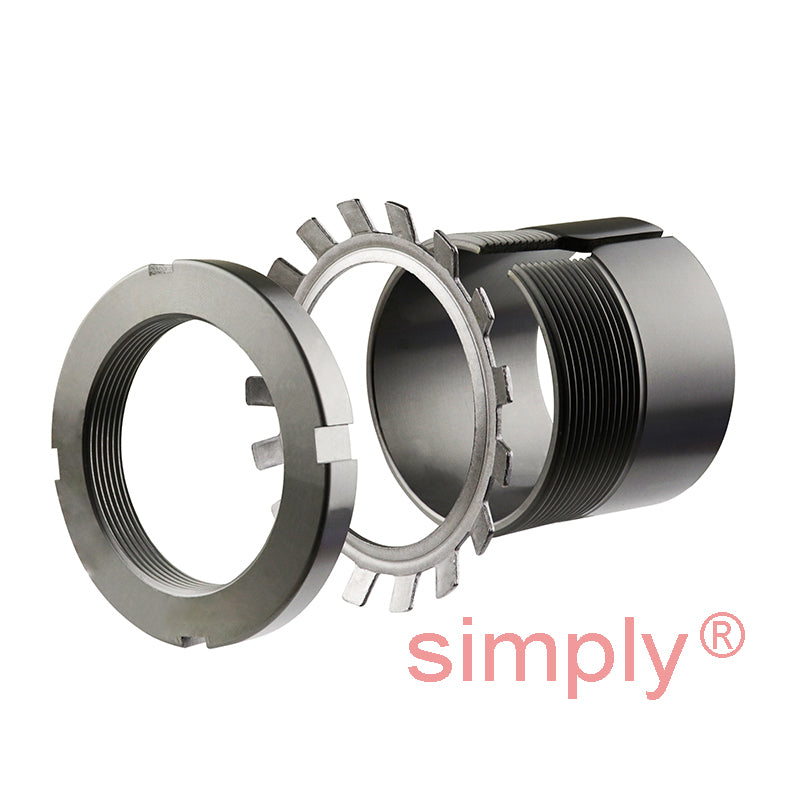

SKF H317 Adaptor Sleeve with Lock Nut and Locking Device for 75mm Shaft
SKF H317 Adaptor Sleeve with Lock Nut and Locking Device for 75mm Shaft
Regular price
£67.10
ex VAT£80.52inc. VAT
Regular price
Sale price
£67.10
ex VAT£80.52
inc. VAT
In stock
Price Break
2+
£59.72
5+
£56.36
10+
£55.69
20+
£55.02
49+
£54.35
74+
£53.68
99+
£50.32
199+
£49.65
249+
£48.98
499+
£48.31
999+
£46.97
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 110mm
- Width:
- 63mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 75mm |
| d | 85mm |
| d3 | 110mm |
| B1 | 63mm |
| B2 | 18mm |
| G | Thread 85x2mm |
| Weight | 1.1 kg |
| --- | Assembly Parts |
| Sleeve | H317 |
| Nut | KM17 |
| Washer | MB17 |
| Hydraulic nut | HMV17E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2217K+taper+self+open>2217K</a> |
| --- | Matching Spherical Roller Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1317K+taper+self+open>1317K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22217K+taper>22217K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21317K+taper>21317K</a> |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2217K+taper>C2217K</a> |
