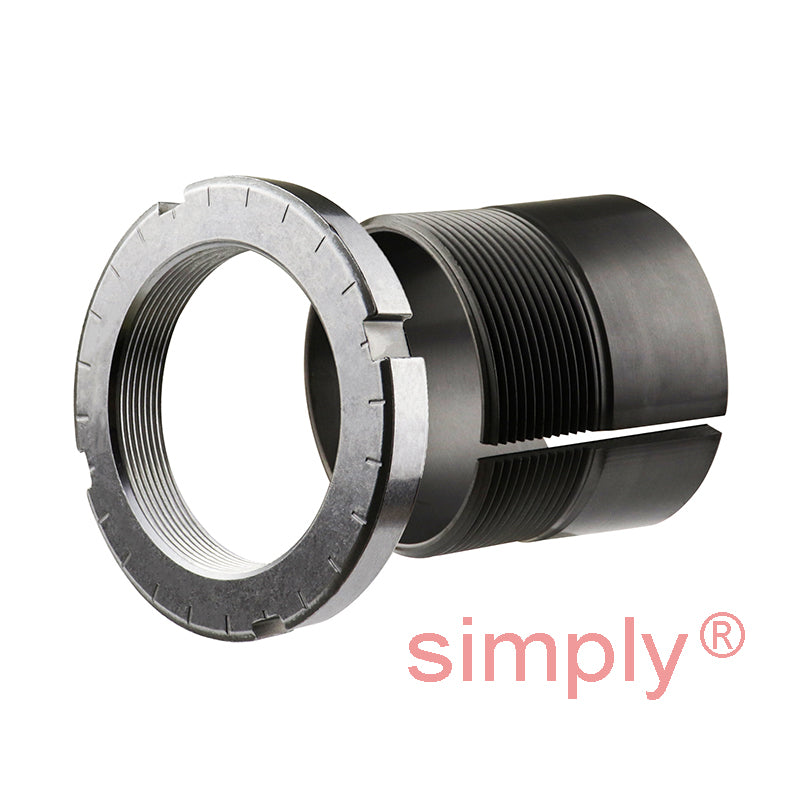

SKF H313E Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft

Name: SKF H313E Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
Brand: SKF
SKU: H313E-SKF
Price: 56.03 GBP
Availability: InStock

£56.03 ex VAT£67.24inc. VAT

£56.03 ex VAT£67.24 inc. VAT

Sale Sold out

In stock

Price Break

2+ £49.86

5+ £47.06

10+ £46.50

20+ £45.94

49+ £45.38

74+ £44.82

99+ £42.02

199+ £41.46

249+ £40.90

499+ £40.34

999+ £39.22

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 60mm
Outside Diameter:: 85mm
Width:: 50mm

Technical

---	Dimensions
d1	60mm
d	65mm
d3	85mm
B1	50mm
B2	15mm
G	Thread 65x2mm
Weight	0.43 kg
---	Assembly Parts
Sleeve	H313E
Nut	KMFE13
Hydraulic nut	HMV13E
---	Matching Carb Toroidal Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2213KTN9+taper>C2213KTN9</a>
