SKU: H3138-SKF

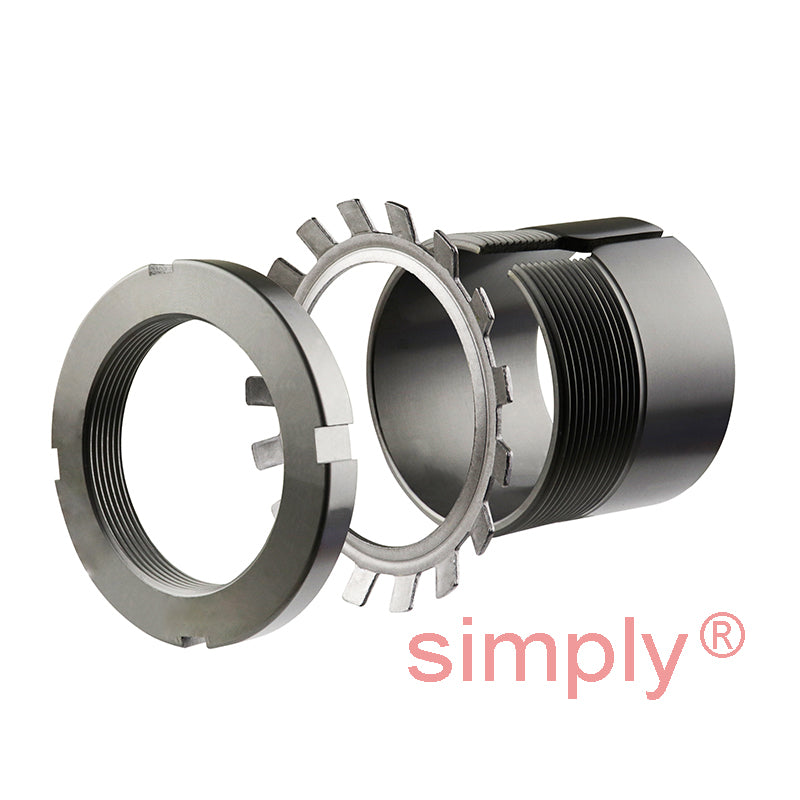

SKF H3138 Adaptor Sleeve with Lock Nut and Locking Device for 170mm Shaft
SKF H3138 Adaptor Sleeve with Lock Nut and Locking Device for 170mm Shaft
Regular price
£447.13
ex VAT£536.56inc. VAT
Regular price
Sale price
£447.13
ex VAT£536.56
inc. VAT
In stock
Price Break
2+
£397.95
5+
£375.59
10+
£371.12
20+
£366.65
49+
£362.18
74+
£357.71
99+
£335.35
199+
£330.88
249+
£326.41
499+
£321.94
999+
£312.99
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 170mm
- Outside Diameter:
- 240mm
- Width:
- 141mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 170mm |
| d | 190mm |
| d3 | 240mm |
| B1 | 141mm |
| B2 | 30.5mm |
| G | Thread 190x3mm |
| Weight | 10.5 kg |
| --- | Assembly Parts |
| Sleeve | H3138 |
| Nut | KM38 |
| Washer | MB38 |
| Hydraulic nut | HMV38E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23138K+taper>23138K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22238K+taper>22238K</a> |
