SKU: H310E-SKF

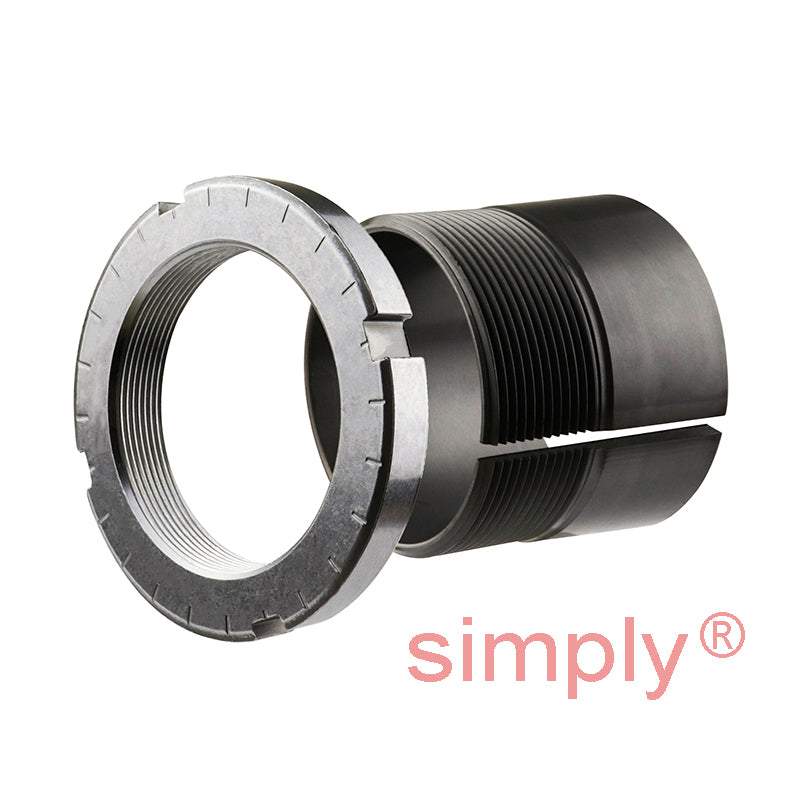

SKF H310E Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft
SKF H310E Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft
Regular price
£32.30
ex VAT£38.76inc. VAT
Regular price
Sale price
£32.30
ex VAT£38.76
inc. VAT
In stock
Price Break
2+
£28.75
5+
£27.13
10+
£26.81
20+
£26.48
49+
£26.16
74+
£25.84
99+
£24.22
199+
£23.90
249+
£23.58
499+
£23.25
999+
£22.61
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 70mm
- Width:
- 42mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 45mm |
| d | 50mm |
| d3 | 70mm |
| B1 | 42mm |
| B2 | 14mm |
| G | Thread 50x1.5mm |
| Weight | 0.3 kg |
| --- | Assembly Parts |
| Sleeve | H310E |
| Nut | KMFE10 |
| Hydraulic nut | HMV10E |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2210KTN9+taper>C2210KTN9</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2210K+taper>C2210K</a> |
