SKU: H307E-SKF

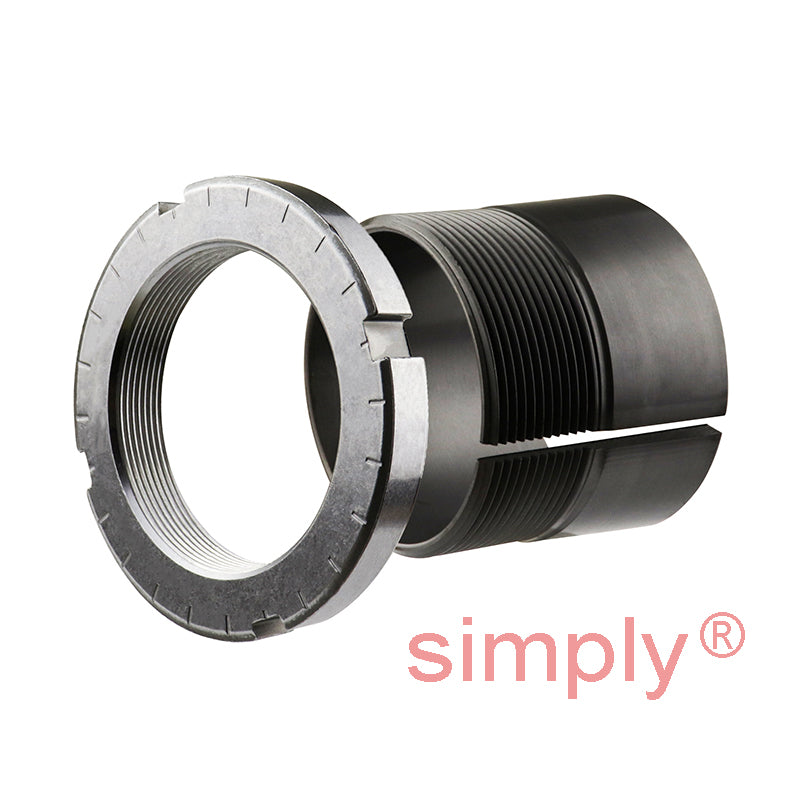

SKF H307E Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
SKF H307E Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
Regular price
£43.34
ex VAT£52.01inc. VAT
Regular price
Sale price
£43.34
ex VAT£52.01
inc. VAT
In stock
Price Break
2+
£38.58
5+
£36.41
10+
£35.97
20+
£35.54
49+
£35.11
74+
£34.67
99+
£32.51
199+
£32.07
249+
£31.64
499+
£31.21
999+
£30.34
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 52mm
- Width:
- 35mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 30mm |
| d | 35mm |
| d3 | 52mm |
| B1 | 35mm |
| B2 | 11.5mm |
| G | Thread 35x1.5mm |
| Weight | 0.15 kg |
| --- | Assembly Parts |
| Sleeve | H307E |
| Nut | KMFE7 |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2207KTN9+taper>C2207KTN9</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2207K+taper>C2207K</a> |
