SKU: H306E-SKF

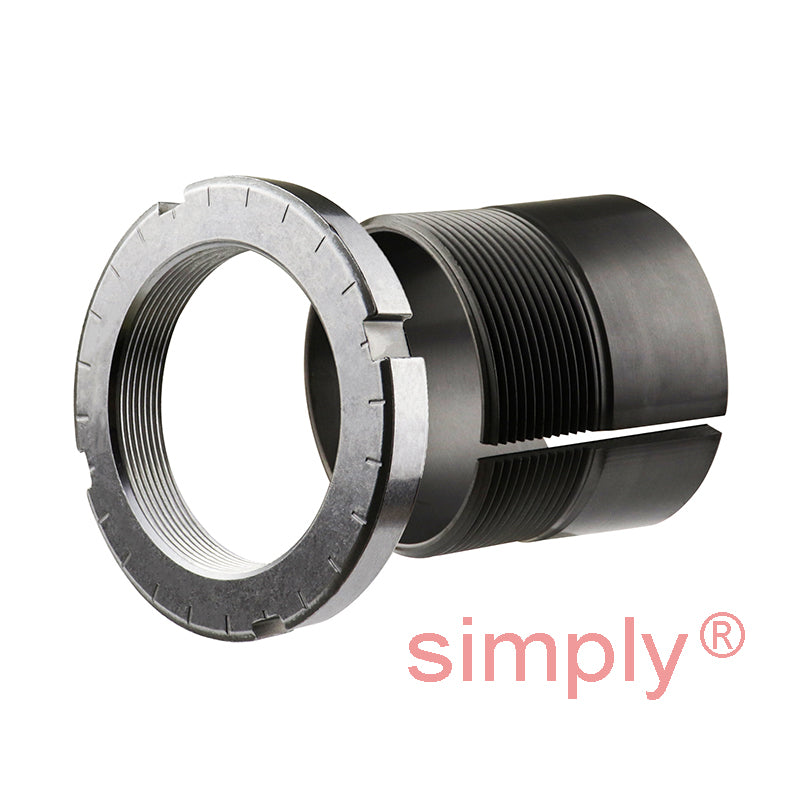

SKF H306E Adaptor Sleeve with Lock Nut and Locking Device for 25mm Shaft
SKF H306E Adaptor Sleeve with Lock Nut and Locking Device for 25mm Shaft
Regular price
£66.40
ex VAT£79.68inc. VAT
Regular price
Sale price
£66.40
ex VAT£79.68
inc. VAT
In stock
Price Break
2+
£59.10
5+
£55.78
10+
£55.11
20+
£54.45
49+
£53.78
74+
£53.12
99+
£49.80
199+
£49.14
249+
£48.47
499+
£47.81
999+
£46.48
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 45mm
- Width:
- 31mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 25mm |
| d | 30mm |
| d3 | 45mm |
| B1 | 31mm |
| B2 | 10.5mm |
| G | Thread 30x1.5mm |
| Weight | 0.11 kg |
| --- | Assembly Parts |
| Sleeve | H306E |
| Nut | KMFE6 |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2206KTN9+taper>C2206KTN9</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2206K+taper>C2206K</a> |
