SKU: H306C-SKF

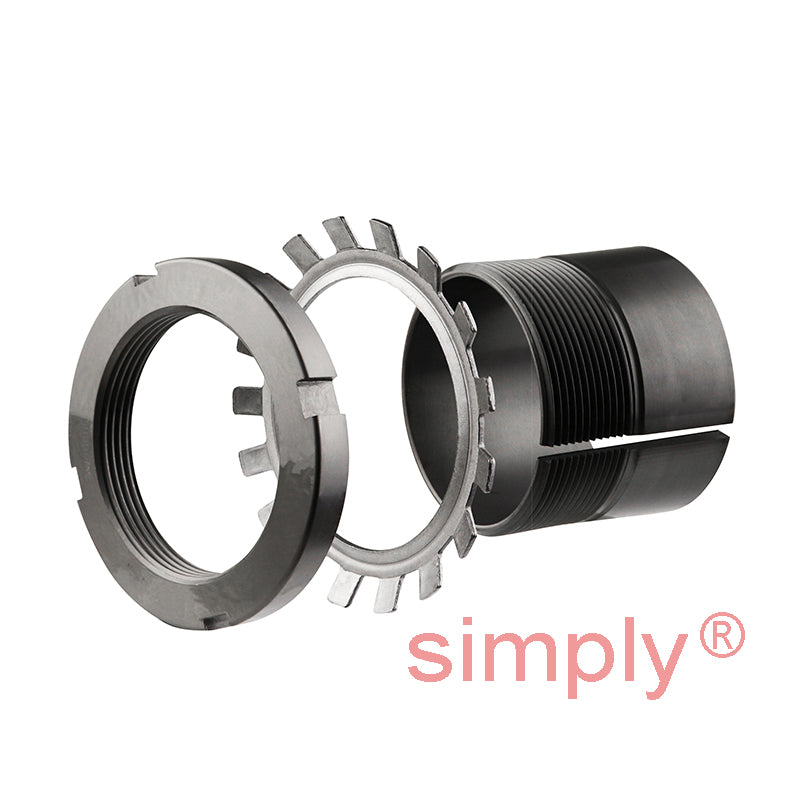

SKF H306C Adaptor Sleeve with Lock Nut and Locking Device for 25mm Shaft
SKF H306C Adaptor Sleeve with Lock Nut and Locking Device for 25mm Shaft
Regular price
£23.52
ex VAT£28.22inc. VAT
Regular price
Sale price
£23.52
ex VAT£28.22
inc. VAT
In stock
Price Break
2+
£20.94
5+
£19.76
10+
£19.52
20+
£19.29
49+
£19.05
74+
£18.82
99+
£17.64
199+
£17.41
249+
£17.17
499+
£16.94
999+
£16.47
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 45mm
- Width:
- 31mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 25mm |
| d | 30mm |
| d3 | 45mm |
| B1 | 31mm |
| B2 | 9mm |
| G | Thread 30x1.5mm |
| Weight | 0.095 kg |
| --- | Assembly Parts |
| Sleeve | H306C |
| Nut | KM6 |
| Washer | MB6C |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2206K-2RS+taper>2206K-2RS</a> |
