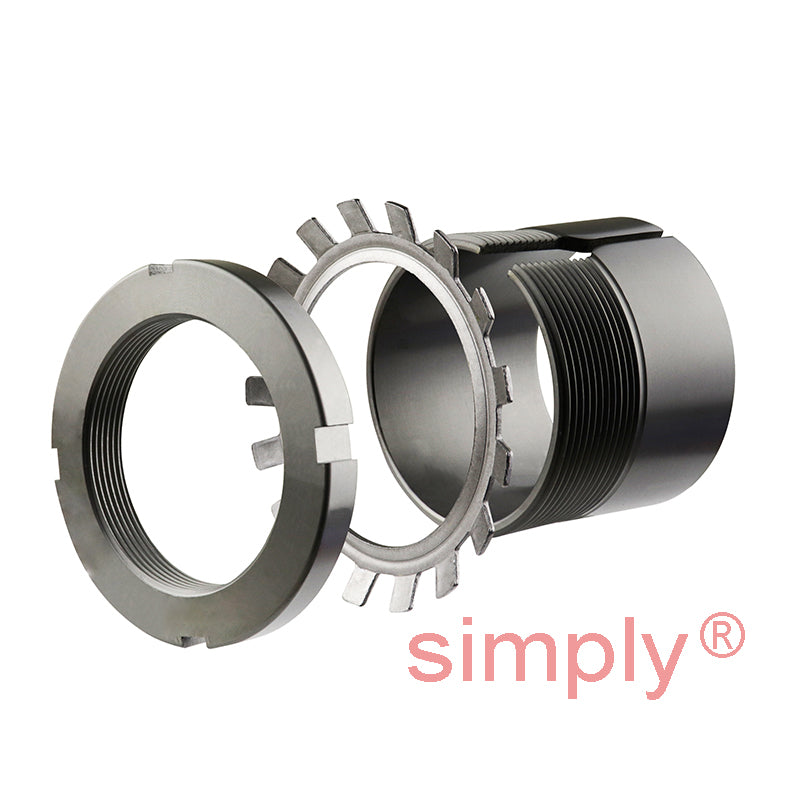

SKF H2338 Adaptor Sleeve with Lock Nut and Locking Device for 170mm Shaft
SKF H2338 Adaptor Sleeve with Lock Nut and Locking Device for 170mm Shaft
Regular price
£754.88
ex VAT£905.86inc. VAT
Regular price
Sale price
£754.88
ex VAT£905.86
inc. VAT
In stock
Price Break
2+
£671.84
5+
£634.10
10+
£626.55
20+
£619.00
49+
£611.45
74+
£603.90
99+
£566.16
199+
£558.61
249+
£551.06
499+
£543.51
999+
£528.42
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 170mm
- Outside Diameter:
- 240mm
- Width:
- 169mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 170mm |
| d | 190mm |
| d3 | 240mm |
| B1 | 169mm |
| B2 | 30.5mm |
| G | Thread 190x3mm |
| Weight | 12 kg |
| --- | Assembly Parts |
| Sleeve | H2338 |
| Nut | KM38 |
| Washer | MB38 |
| Hydraulic nut | HMV38E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23238K+taper>23238K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22338K+taper>22338K</a> |
