SKU: H2330-SKF

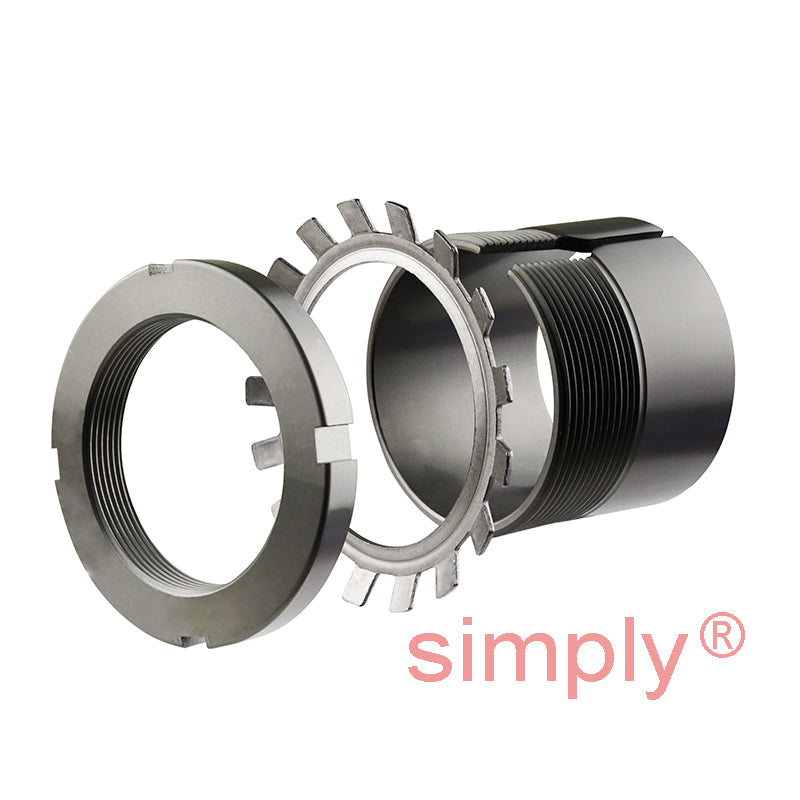

SKF H2330 Adaptor Sleeve with Lock Nut and Locking Device for 135mm Shaft
SKF H2330 Adaptor Sleeve with Lock Nut and Locking Device for 135mm Shaft
Regular price
£400.82
ex VAT£480.98inc. VAT
Regular price
Sale price
£400.82
ex VAT£480.98
inc. VAT
In stock
Price Break
2+
£356.73
5+
£336.69
10+
£332.68
20+
£328.67
49+
£324.66
74+
£320.65
99+
£300.61
199+
£296.60
249+
£292.60
499+
£288.59
999+
£280.57
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 135mm
- Outside Diameter:
- 195mm
- Width:
- 139mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 135mm |
| d | 150mm |
| d3 | 195mm |
| B1 | 139mm |
| B2 | 26mm |
| G | Thread 150x2mm |
| Weight | 6.4 kg |
| --- | Assembly Parts |
| Sleeve | H2330 |
| Nut | KM30 |
| Washer | MB30 |
| Hydraulic nut | HMV30E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23230K+taper>23230K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22330K+taper>22330K</a> |
