SKU: H2324-SKF

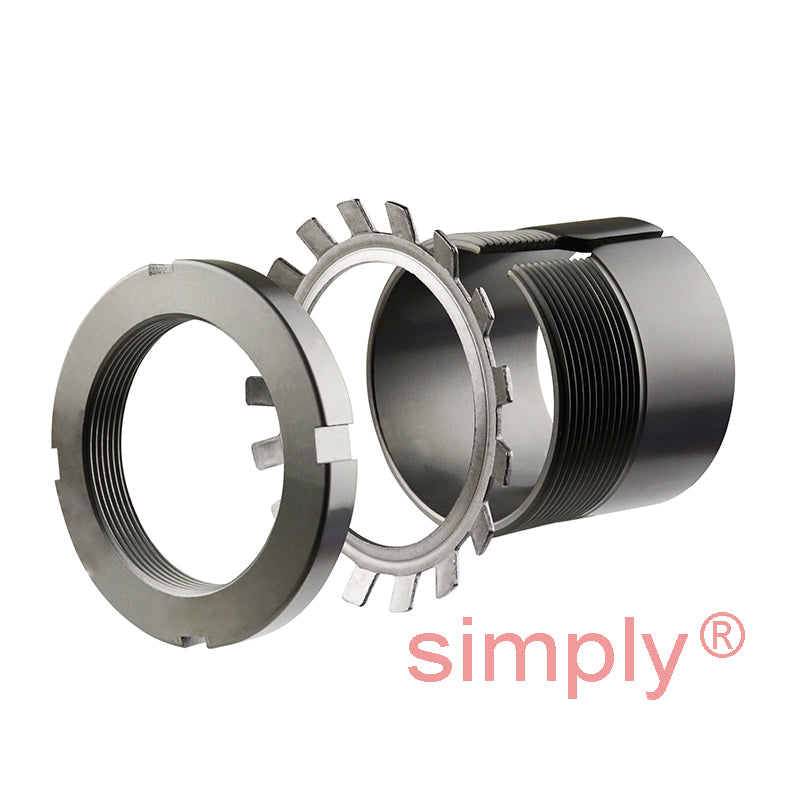

SKF H2324 Adaptor Sleeve with Lock Nut and Locking Device for 110mm Shaft
SKF H2324 Adaptor Sleeve with Lock Nut and Locking Device for 110mm Shaft
Regular price
£199.92
ex VAT£239.90inc. VAT
Regular price
Sale price
£199.92
ex VAT£239.90
inc. VAT
In stock
Price Break
2+
£177.93
5+
£167.94
10+
£165.94
20+
£163.94
49+
£161.94
74+
£159.94
99+
£149.94
199+
£147.94
249+
£145.95
499+
£143.95
999+
£139.95
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 155mm
- Width:
- 112mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 110mm |
| d | 120mm |
| d3 | 155mm |
| B1 | 112mm |
| B2 | 22mm |
| G | Thread 120x2mm |
| Weight | 3 kg |
| --- | Assembly Parts |
| Sleeve | H2324 |
| Nut | KM24 |
| Washer | MB24 |
| Hydraulic nut | HMV24E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23224K+taper>23224K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22324K+taper>22324K</a> |
