SKU: GRAE25-NPP-B-FA125.5-INA

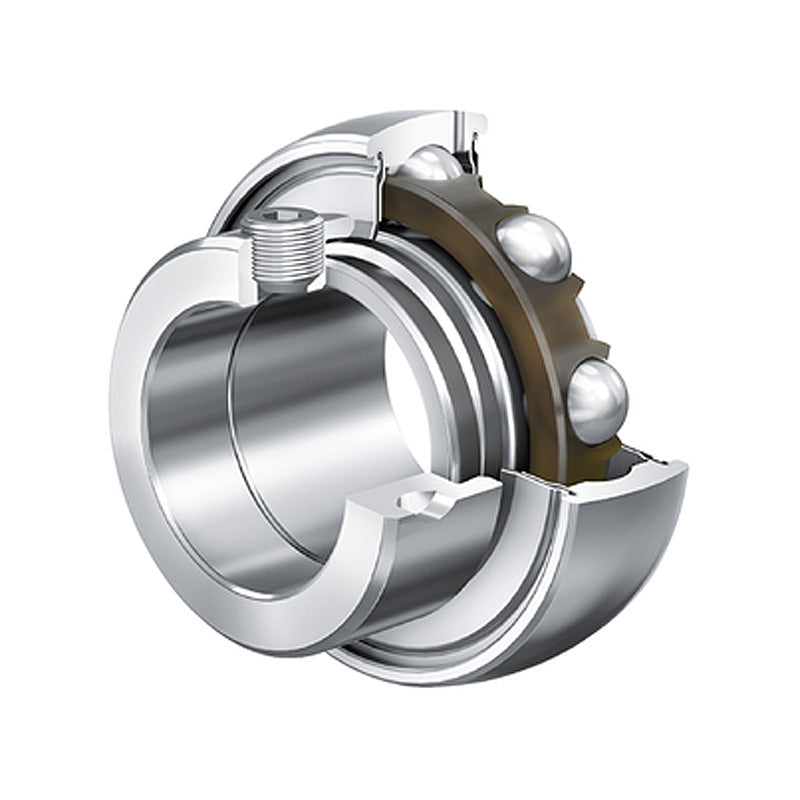

INA GRAE25-NPP-B-FA107/125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 25x52x31mm
INA GRAE25-NPP-B-FA107/125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 25x52x31mm
Regular price
£27.51
ex VAT£33.01inc. VAT
Regular price
Sale price
£27.51
ex VAT£33.01
inc. VAT
In stock
Price Break
10+
£24.48
19+
£23.11
29+
£22.83
39+
£22.56
49+
£22.28
74+
£22.01
99+
£20.63
199+
£20.36
249+
£20.08
499+
£19.81
999+
£19.26
Couldn't load pickup availability
Description
Description
|
INA GRAE..-NPP-B-FA125.5 Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 31mm
- Type:
- Spherical Outer
Technical
Technical
| d | 25mm |
|---|---|
| Dsp | 52mm |
| B1 | 31mm |
| B | 21.4mm |
| C | 15mm |
| Ca | 3.9mm |
| d2 | 30.5mm |
| d3 max | 37.5mm |
| S | 7.5mm |
| W | 3mm |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Weight | 0.19 kg |
